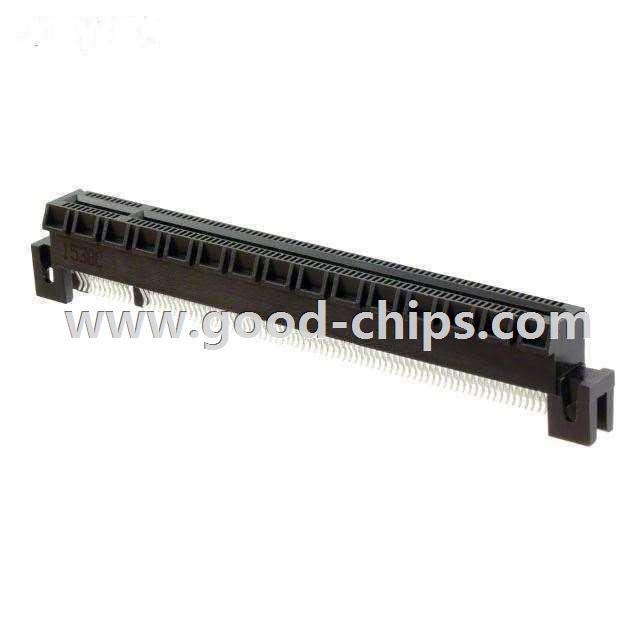

| Manufacturer Part Number: | G630HAA12246EU |
|---|---|
| Manufacturer: | Amphenol Commercial Products |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 10542 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN PCI STRADDLE 164POS |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | G630HAA12246EU Datasheet |
| Internal Part Number | 898-G630HAA12246EU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | PCI Express Connectors | |
| Online Catalog | G630H Series | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | Amphenol Commercial Products | |
| Series | G630H | |
| Packaging | Tray | |
| Part Status | Active | |
| Card Type | PCI Express™ | |
| Gender | Female | |
| Number of Positions/Bay/Row | - | |
| Number of Positions | 164 | |
| Card Thickness | 0.062" (1.57mm) | |
| Number of Rows | 2 | |
| Pitch | 0.039" (1.00mm) | |
| Features | Card Extender, Locking Ramp | |
| Mounting Type | Board Edge, Straddle Mount | |
| Termination | Solder | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Contact Type | - | |
| Color | Black | |
| Flange Feature | Straddle Mount Opening, Unthreaded, 0.079" (2.00mm) | |
| Operating Temperature | - | |
| Material - Insulation | Polyamide (PA9T), Nylon 9T | |
| Read Out | Dual | |
| Standard Package | 12 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | G630HAA12246EU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
G630HAA12246EU is in stock for immediate shipping now. We are the distributor of Amphenol Commercial Products all series components. The condition of G630HAA12246EU is new and unused, you can buy G630HAA12246EU Amphenol Commercial Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for G630HAA12246EU.
