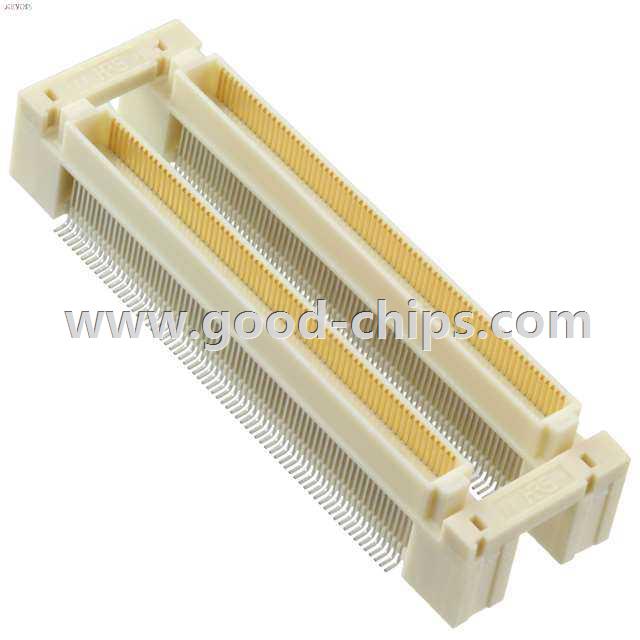

FX8C-140/140P11-SV6J(71)

FX8C-140/140P11-SV6J(71)
Manufacturer Part Number:FX8C-140/140P11-SV6J(71)
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:9026 Pieces
Unit Price:Quote by Email
Description:280 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: FX8C-140/140P11-SV6J(71) Datasheet
FX8C-140/140P11-SV6J(71)´s Parameters
Internal Part Number898-FX8C-140/140P11-SV6J(71)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Video FileHirose FunctionMAX Board-to-Board Connectors | Digi-Key Daily
Online Catalog FunctionMax® FX8 and FX8C Series
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
ManufacturerHirose Electric Co Ltd
SeriesFunctionMax™ FX8C
PackagingTray
Part StatusActive
Connector TypeHeader, Outer Shroud Contacts
Number of Positions280
Pitch0.023" (0.60mm)
Number of Rows4
Mounting TypeSurface Mount
FeaturesBoard Guide, Bridged Headers (2)
Contact FinishGold
Contact Finish Thickness-
Mated Stacking Heights11mm, 16mm
Height Above Board0.368" (9.35mm)
Standard Package 20
Weight0.001 KG
ApplicationEmail for details
Replacement PartFX8C-140/140P11-SV6J(71)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

FX8C-140/140P11-SV6J(71) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of FX8C-140/140P11-SV6J(71) is new and unused, you can buy FX8C-140/140P11-SV6J(71) Hirose Electric Co Ltd with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for FX8C-140/140P11-SV6J(71).
