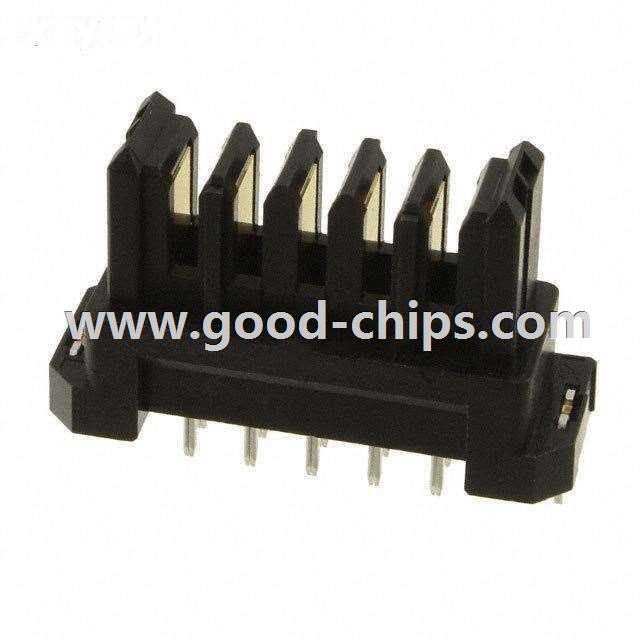

FX30B-5P-3.81DSA25

FX30B-5P-3.81DSA25
Manufacturer Part Number:FX30B-5P-3.81DSA25
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Headers, Male Pins
Available Quantity:9022 Pieces
Unit Price:Quote by Email
Description:CONN HEADER 5POS PCB VERT
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: FX30B-5P-3.81DSA25 Datasheet
FX30B-5P-3.81DSA25´s Parameters
Internal Part Number898-FX30B-5P-3.81DSA25
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Video FileHirose FunctionMAX Board-to-Board Connectors | Digi-Key Daily
Featured ProductFX30B Series Power Connector Systems
Online Catalog FunctionMax™ FX30B Series
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Headers, Male Pins
ManufacturerHirose Electric Co Ltd
SeriesFunctionMax™ FX30B
PackagingTray
Part StatusActive
Connector TypeShrouded
Number of Positions5
Number of Positions LoadedAll
Pitch0.150" (3.81mm)
Number of Rows1
Row Spacing-
Height Stacking (Mating)0.984" (25.00mm)
Molding Height Above Board0.756" (19.20mm)
Contact Mating Length-
Mounting TypeThrough Hole
TerminationSolder
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
FeaturesBoard Guide, Board Lock
ColorBlack
Standard Package 35
Weight0.001 KG
ApplicationEmail for details
Replacement PartFX30B-5P-3.81DSA25
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

FX30B-5P-3.81DSA25 is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of FX30B-5P-3.81DSA25 is new and unused, you can buy FX30B-5P-3.81DSA25 Hirose Electric Co Ltd with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for FX30B-5P-3.81DSA25.
