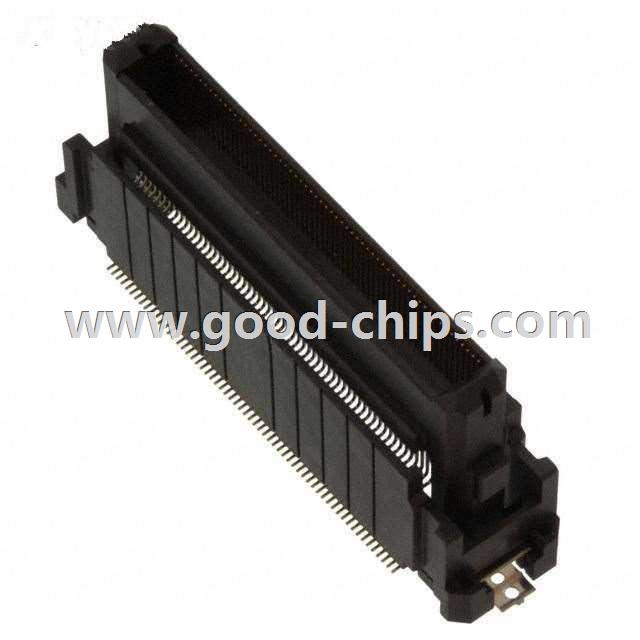

Manufacturer Part Number: | FX20-120P-0.5SV20 |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9017 Pieces |
Unit Price: | Quote by Email |
Description: | 120 Position Connector Header, Outer Shroud Contacts Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FX20-120P-0.5SV20 Datasheet |
Internal Part Number | 898-FX20-120P-0.5SV20 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Connectors for Smart Metering - Hirose Hirose FunctionMAX Board-to-Board Connectors | Digi-Key Daily | |
Featured Product | FX20 Series | |
Online Catalog | FunctionMax® FX20 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | Hirose Electric Co Ltd | |
Series | FunctionMax™ FX20 | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Header, Outer Shroud Contacts | |
Number of Positions | 120 | |
Pitch | 0.020" (0.50mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Solder Retention | |
Contact Finish | Gold | |
Contact Finish Thickness | 3.9µin (0.10µm) | |
Mated Stacking Heights | 20mm, 30mm | |
Height Above Board | 0.717" (18.21mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FX20-120P-0.5SV20 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FX20-120P-0.5SV20 is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of FX20-120P-0.5SV20 is new and unused, you can buy FX20-120P-0.5SV20 Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FX20-120P-0.5SV20.
