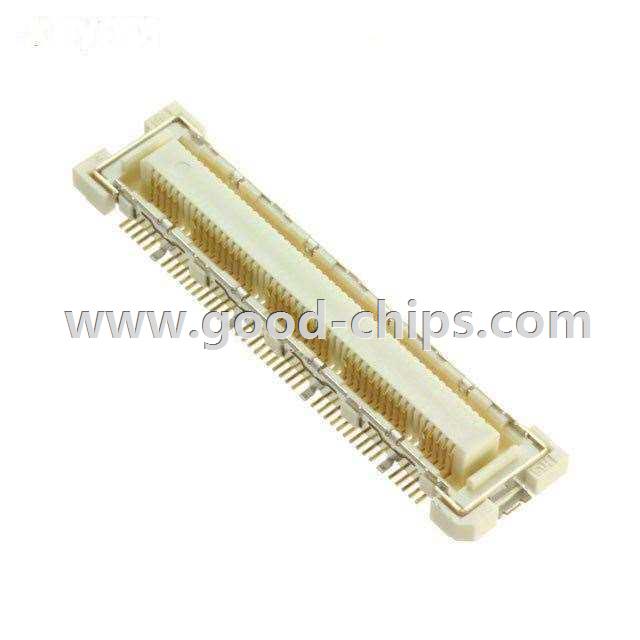

Manufacturer Part Number: | FX10A-80S/8-SV(71) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 10926 Pieces |
Unit Price: | Quote by Email |
Description: | 80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FX10A-80S/8-SV(71) Datasheet |
Internal Part Number | 898-FX10A-80S/8-SV(71) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | FX10, FX11 - Board to Board High Speed Connectors | |
Video File | High Speed Connectors Hirose FunctionMAX Board-to-Board Connectors | Digi-Key Daily | |
Featured Product | FX10 Pitch Stacking Connector Series | |
Online Catalog | FunctionMax® FX10 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | Hirose Electric Co Ltd | |
Series | FunctionMax™ FX10 | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Receptacle, Center Strip Contacts | |
Number of Positions | 80 | |
Pitch | 0.020" (0.50mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide, Ground Plate, Solder Retention | |
Contact Finish | Gold | |
Contact Finish Thickness | 3.9µin (0.10µm) | |
Mated Stacking Heights | 4mm, 5mm | |
Height Above Board | 0.126" (3.20mm) | |
Standard Package | 80 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FX10A-80S/8-SV(71) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FX10A-80S/8-SV(71) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of FX10A-80S/8-SV(71) is new and unused, you can buy FX10A-80S/8-SV(71) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FX10A-80S/8-SV(71).
