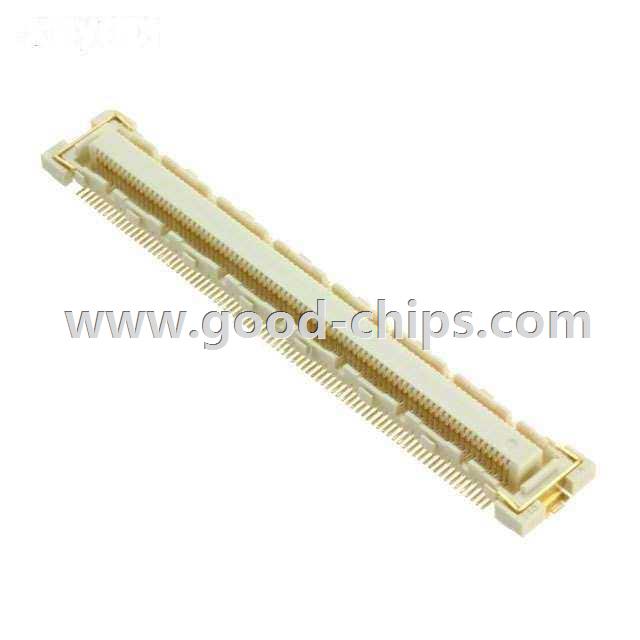

FX10A-168S-SV(85)

FX10A-168S-SV(85)
Manufacturer Part Number:FX10A-168S-SV(85)
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:168 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):2 (1 Year)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: FX10A-168S-SV(85) Datasheet
FX10A-168S-SV(85)´s Parameters
Internal Part Number898-FX10A-168S-SV(85)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesFX10, FX11 - Board to Board High Speed Connectors
Video FileHirose FunctionMAX Board-to-Board Connectors | Digi-Key Daily
Featured ProductFX10 Pitch Stacking Connector Series
Online Catalog FunctionMax® FX10 Series
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
ManufacturerHirose Electric Co Ltd
SeriesFunctionMax™ FX10
PackagingTape & Reel (TR)
Part StatusActive
Connector TypeReceptacle, Center Strip Contacts
Number of Positions168
Pitch0.020" (0.50mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide, Solder Retention
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Mated Stacking Heights4mm, 5mm, 6mm, 7mm, 8mm
Height Above Board0.126" (3.20mm)
Standard Package 250
Weight0.001 KG
ApplicationEmail for details
Replacement PartFX10A-168S-SV(85)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

FX10A-168S-SV(85) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of FX10A-168S-SV(85) is new and unused, you can buy FX10A-168S-SV(85) Hirose Electric Co Ltd with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for FX10A-168S-SV(85).
