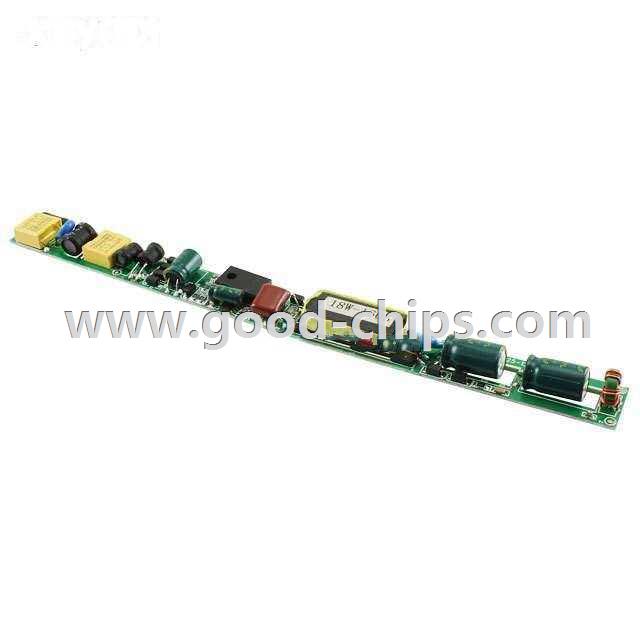

| Manufacturer Part Number: | FT825-12S480MA |
|---|---|
| Manufacturer: | Fremont Micro Devices USA |
| Product Category: | LED Drivers |
| Available Quantity: | 9200 Pieces |
| Unit Price: | Quote by Email |
| Description: | 480mA 25 ~ 42 V Constant Current LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FT825-12S480MA Datasheet |
| Internal Part Number | 898-FT825-12S480MA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Reference Design Library | FT825-12S480MA: 480mA @ 40V Max, 90 ~ 264V in | |
| Online Catalog | FT825 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Fremont Micro Devices USA | |
| Series | - | |
| Part Status | Active | |
| Type | Constant Current | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 90VAC | |
| Voltage - Input (Max) | 264VAC | |
| Voltage - Output | 25 ~ 42 V | |
| Current - Output (Max) | 480mA | |
| Power (Watts) | 18W | |
| Voltage - Isolation | - | |
| Dimming | - | |
| Features | - | |
| Ratings | - | |
| Operating Temperature | - | |
| Efficiency | 88% | |
| Termination Style | Connector | |
| Size / Dimension | 8.50" L x 0.69" W x 0.39" H (216.0mm x 17.5mm x 10.0mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | EN, IEC | |
| Weight | 0.001 KG | |
| Standard Package | 1 | |
| Application | Email for details | |
| Replacement Part | FT825-12S480MA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FT825-12S480MA is in stock for immediate shipping now. We are the distributor of Fremont Micro Devices USA all series components. The condition of FT825-12S480MA is new and unused, you can buy FT825-12S480MA Fremont Micro Devices USA with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FT825-12S480MA.
