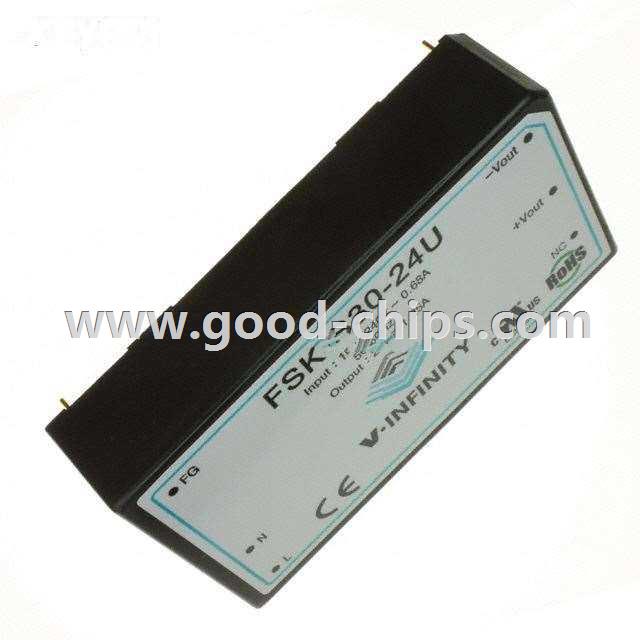

Manufacturer Part Number: | FSK-S30-24U |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | AC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONV AC-DC 24V 1.25A 30W PCB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FSK-S30-24U Datasheet |
Internal Part Number | 898-FSK-S30-24U | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | FSK-S30 Series Cert of Compliance | |
PCN Obsolescence/ EOL | PK, PTK, FSK, FSC 28/Sept/2012 | |
Category | Power Supplies - Board Mount | |
Family | AC DC Converters | |
Manufacturer | CUI Inc. | |
Series | FSK-S30 | |
Part Status | Obsolete | |
Number of Outputs | 1 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 24V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 1.25A | |
Power (Watts) | 30W | |
Power Supply Type | Switching (Closed Frame) | |
Applications | ITE (Commercial) | |
Features | OCP, OTP, SCP | |
Operating Temperature | -10°C ~ 60°C | |
Efficiency | 86% | |
Mounting Type | Through Hole | |
Size / Dimension | 3.70" L x 2.09" W x 0.97" H (94.0mm x 53.0mm x 24.5mm) | |
Power (Watts) - Max | 30W | |
Line Regulation | ±1% | |
Load Regulation | ±1% | |
Approvals | CE, CSA, UL | |
Weight | 0.001 KG | |
Standard Package | 144 | |
Application | Email for details | |
Replacement Part | FSK-S30-24U | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FSK-S30-24U is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of FSK-S30-24U is new and unused, you can buy FSK-S30-24U CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSK-S30-24U.
