| Manufacturer Part Number: | FSDH0265RL |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Converter Offline Flyback Topology 100kHz 8-LSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FSDH0265RL Datasheet |
| Internal Part Number | 898-FSDH0265RL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 03/Dec/2009 | |
| PCN Design/Specification | Passivation Material 07/Dec/2007 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | FPS™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Output Isolation | Isolated | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | 650V | |
| Topology | Flyback | |
| Voltage - Start Up | 12V | |
| Voltage - Supply (Vcc/Vdd) | 8 V ~ 20 V | |
| Duty Cycle | 77% | |
| Frequency - Switching | 100kHz | |
| Power (Watts) | 27W | |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage | |
| Control Features | - | |
| Operating Temperature | -25°C ~ 85°C (TA) | |

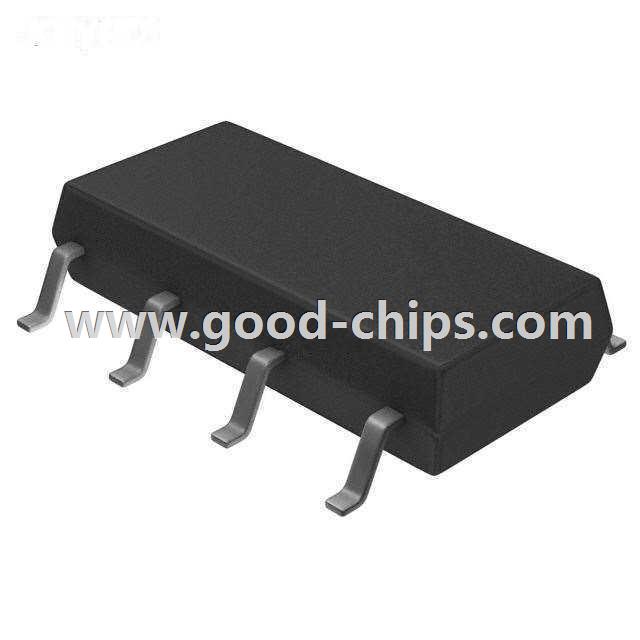

| Package / Case | 8-SMD, Gull Wing | |
| Supplier Device Package | 8-LSOP | |
| Mounting Type | Surface Mount | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FSDH0265RL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FSDH0265RL is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSDH0265RL is new and unused, you can buy FSDH0265RL Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSDH0265RL.
