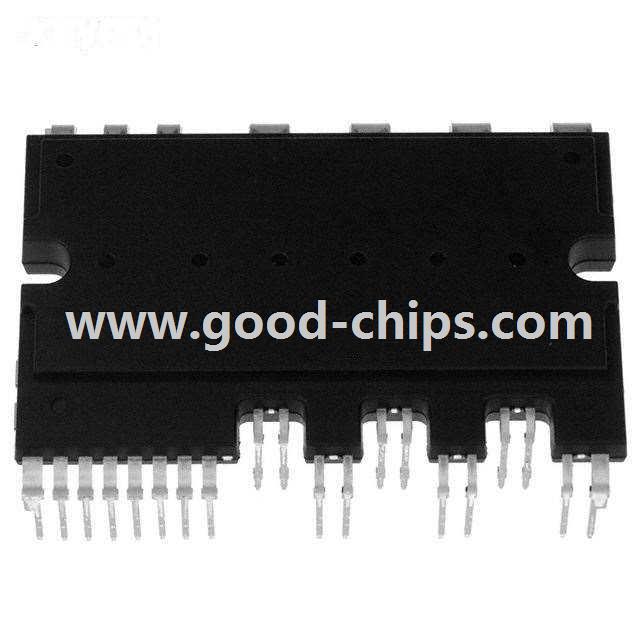

| Manufacturer Part Number: | FSBF15CH60BTL |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module IGBT 3 Phase 600V 15A SPM27-JB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FSBF15CH60BTL Datasheet |
| Internal Part Number | 898-FSBF15CH60BTL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 14/Mar/2011 | |
| PCN Packaging | Tape Retract Pin 14/May/2008 | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Motion-SPM® | |
| Part Status | Obsolete | |
| Type | IGBT | |
| Configuration | 3 Phase | |
| Current | 15A | |
| Voltage | 600V | |
| Voltage - Isolation | 2500Vrms | |
| Package / Case | SPM27-JB | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FSBF15CH60BTL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FSBF15CH60BTL is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSBF15CH60BTL is new and unused, you can buy FSBF15CH60BTL Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSBF15CH60BTL.
