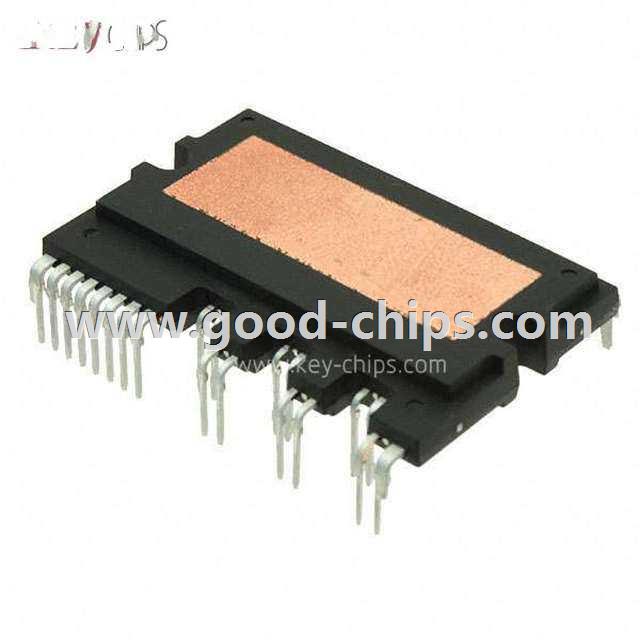

| Manufacturer Part Number: | FSBB20CH60CL |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9029 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module IGBT 3 Phase 600V 20A SPM27CB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FSBB20CH60CL Datasheet |
| Internal Part Number | 898-FSBB20CH60CL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Datasheet Chg 11/Mar2016 Marking Chg 04/May/2016 | |
| PCN Assembly/Origin | Cancellation of PCN P578AAB 20/Apr/2016 | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Article Library | Over Current Protection or Short Circuit Protection - Article | |
| Online Catalog | Motion-SPM™ SPM3 Series | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Motion-SPM® | |
| Part Status | Not For New Designs | |
| Type | IGBT | |
| Configuration | 3 Phase | |
| Current | 20A | |
| Voltage | 600V | |
| Voltage - Isolation | 2500Vrms | |
| Package / Case | SPM27CB | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FSBB20CH60CL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FSBB20CH60CL is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSBB20CH60CL is new and unused, you can buy FSBB20CH60CL Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSBB20CH60CL.
