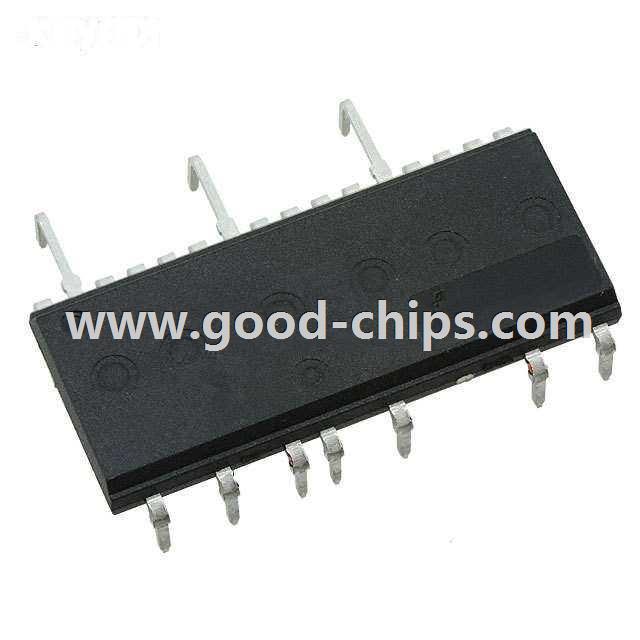

| Manufacturer Part Number: | FSB50250UTD |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module FET 3 Phase 500V 1.1A SPM23ED |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FSB50250UTD Datasheet |
| Internal Part Number | 898-FSB50250UTD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Datasheet Chg 11/Mar2016 Marking Chg 04/May/2016 | |
| PCN Assembly/Origin | Cancellation of PCN P578AAB 20/Apr/2016 | |
| Article Library | Over Current Protection or Short Circuit Protection - Article | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Motion-SPM® | |
| Part Status | Not For New Designs | |
| Type | FET | |
| Configuration | 3 Phase | |
| Current | 1.1A | |
| Voltage | 500V | |
| Voltage - Isolation | 1500Vrms | |
| Package / Case | SPM23ED | |
| Standard Package | 15 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FSB50250UTD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FSB50250UTD is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSB50250UTD is new and unused, you can buy FSB50250UTD Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSB50250UTD.
