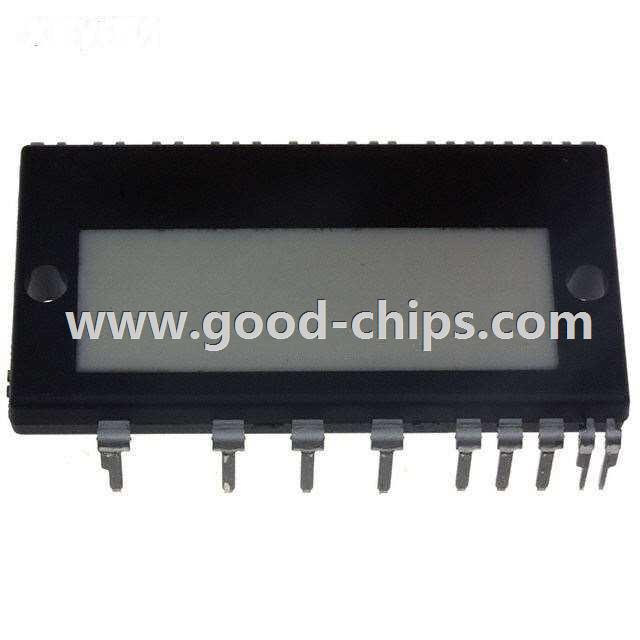

Manufacturer Part Number: | FSAM20SM60A |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Power Driver Modules |
Available Quantity: | 9053 Pieces |
Unit Price: | Quote by Email |
Description: | Power Driver Module IGBT 3 Phase 600V 20A SPM32AA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FSAM20SM60A Datasheet |
Internal Part Number | 898-FSAM20SM60A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Smart Power | |
PCN Design/Specification | Marking Chg 04/May/2016 | |
Article Library | Over Current Protection or Short Circuit Protection - Article | |
Category | Discrete Semiconductor Products | |
Family | Power Driver Modules | |
Manufacturer | Fairchild Semiconductor | |
Series | Motion-SPM® | |
Part Status | Not For New Designs | |
Type | IGBT | |
Configuration | 3 Phase | |
Current | 20A | |
Voltage | 600V | |
Voltage - Isolation | 2500Vrms | |
Package / Case | SPM32AA | |
Standard Package | 8 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FSAM20SM60A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FSAM20SM60A is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSAM20SM60A is new and unused, you can buy FSAM20SM60A Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSAM20SM60A.
