| Manufacturer Part Number: | FSA2380BQX |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Interface - Analog Switches - Special Purpose |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC SWITCH AUDIO 3:1NEG 14-DQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FSA2380BQX Datasheet |
| Internal Part Number | 898-FSA2380BQX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Analog Switches - Special Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches - Special Purpose | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Applications | Audio | |
| Multiplexer/Demultiplexer Circuit | - | |
| Switch Circuit | DP3T | |
| Number of Channels | 2 | |
| On-State Resistance (Max) | 2 Ohm | |
| Voltage - Supply, Single (V+) | 2.7 V ~ 5 V | |
| Voltage - Supply, Dual (V±) | - | |
| -3db Bandwidth | 120MHz | |
| Features | Break-Before-Make | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

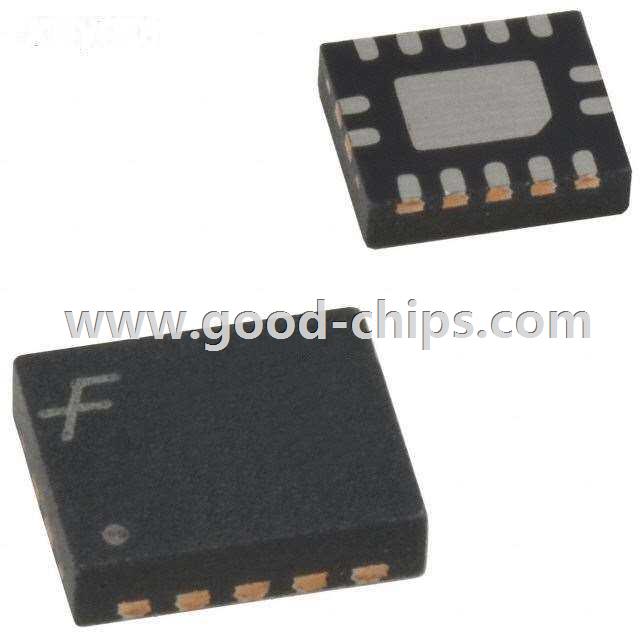

| Package / Case | 14-WFQFN Exposed Pad | |
| Supplier Device Package | 14-DQFN (3x2.5) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FSA2380BQX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FSA2380BQX is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSA2380BQX is new and unused, you can buy FSA2380BQX Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSA2380BQX.
