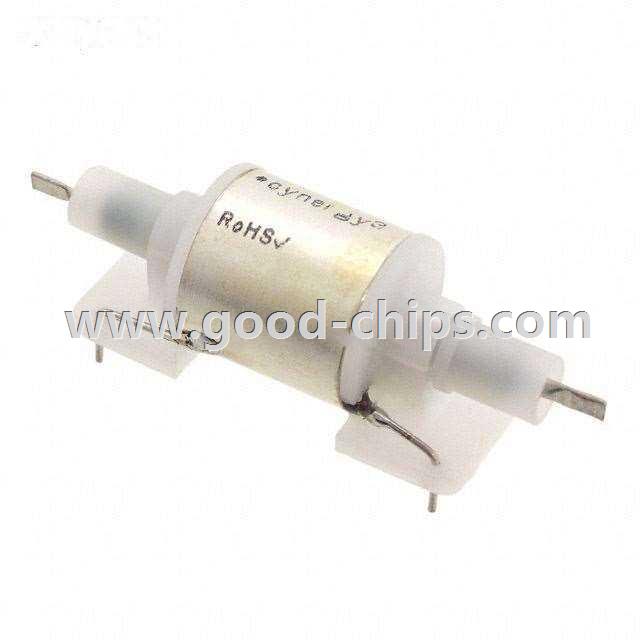

FRD13504

FRD13504
Manufacturer Part Number:FRD13504
Manufacturer:
Product Category:Signal Relays, Up to 2 Amps
Available Quantity:9030 Pieces
Unit Price:Quote by Email
Description:Reed Relay SPST-NC (1 Form B) Through Hole
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: FRD13504 Datasheet
FRD13504´s Parameters
Internal Part Number898-FRD13504
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog FRD13000 Series
CategoryRelays
FamilySignal Relays, Up to 2 Amps
ManufacturerCynergy 3
SeriesFRD13000
PackagingBulk
Part StatusActive
Relay TypeReed
Coil TypeNon Latching
Coil Current26.7mA
Coil Voltage24VDC
Contact FormSPST-NC (1 Form B)
Contact Rating (Current)1A
Switching Voltage20VDC - Max
Turn On Voltage (Max)16 VDC
Turn Off Voltage (Min)3 VDC
Operate Time1ms
Release Time3ms
Features30 MHz
Mounting TypeThrough Hole
Termination StyleAxial
Contact Material-
Coil Power640 mW
Coil Resistance900 Ohms
Operating Temperature-40°C ~ 85°C
Standard Package 20
Weight0.001 KG
ApplicationEmail for details
Replacement PartFRD13504
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

FRD13504 is in stock for immediate shipping now. We are the distributor of Cynergy 3 all series components. The condition of FRD13504 is new and unused, you can buy FRD13504 Cynergy 3 with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for FRD13504.
