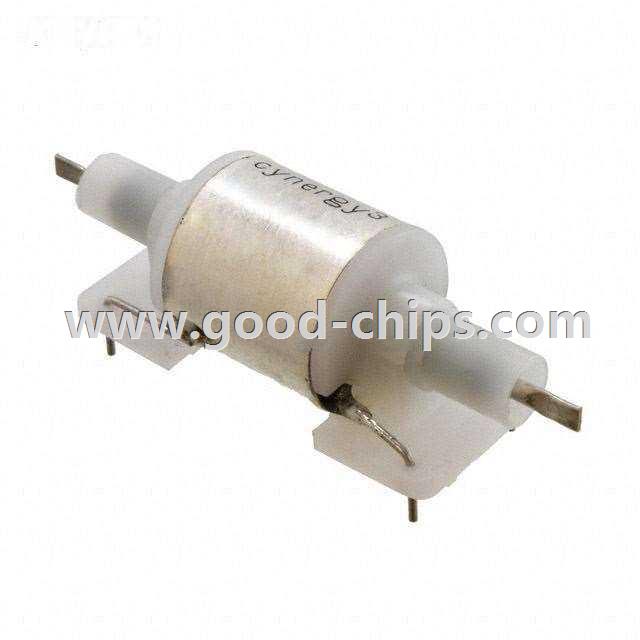

| Manufacturer Part Number: | FRD13503 |
|---|---|
| Manufacturer: | Cynergy 3 |
| Product Category: | Signal Relays, Up to 2 Amps |
| Available Quantity: | 9033 Pieces |
| Unit Price: | Quote by Email |
| Description: | Reed Relay SPST-NO (1 Form A) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FRD13503 Datasheet |
| Internal Part Number | 898-FRD13503 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | FRD13000 Series | |
| Category | Relays | |
| Family | Signal Relays, Up to 2 Amps | |
| Manufacturer | Cynergy 3 | |
| Series | FRD13000 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Relay Type | Reed | |
| Coil Type | Non Latching | |
| Coil Current | 26.7mA | |
| Coil Voltage | 24VDC | |
| Contact Form | SPST-NO (1 Form A) | |
| Contact Rating (Current) | 1A | |
| Switching Voltage | 20VDC - Max | |
| Turn On Voltage (Max) | 15 VDC | |
| Turn Off Voltage (Min) | 3 VDC | |
| Operate Time | 3ms | |
| Release Time | 1ms | |
| Features | 30 MHz | |
| Mounting Type | Through Hole | |
| Termination Style | Axial | |
| Contact Material | - | |
| Coil Power | 640 mW | |
| Coil Resistance | 900 Ohms | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FRD13503 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FRD13503 is in stock for immediate shipping now. We are the distributor of Cynergy 3 all series components. The condition of FRD13503 is new and unused, you can buy FRD13503 Cynergy 3 with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FRD13503.
