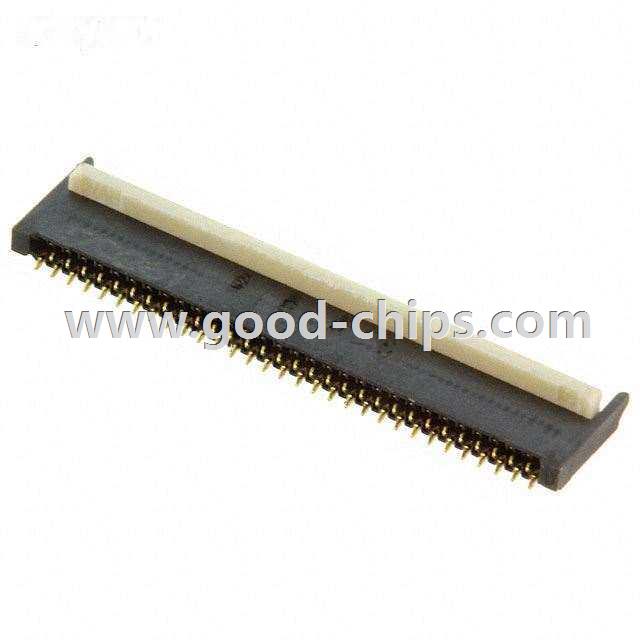

| Manufacturer Part Number: | FR02C061JA1-R5000 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 61 Position FPC Connector Contacts, Top and Bottom 0.008" (0.20mm) Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FR02C061JA1-R5000 Datasheet |
| Internal Part Number | 898-FR02C061JA1-R5000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | FR02 Series Board-to-FPC Connector | |
| Featured Product | FR02 Series Connectors | |
| Online Catalog | FR02 Series | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | JAE Electronics | |
| Series | FR02 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Flat Flex Type | FPC | |
| Mounting Type | Surface Mount, Right Angle | |
| Connector/Contact Type | Contacts, Top and Bottom | |
| Number of Positions | 61 | |
| Pitch | 0.008" (0.20mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.20mm | |
| Height Above Board | 0.032" (0.81mm) | |
| Locking Feature | Flip Lock, Backlock | |
| Cable End Type | Tabbed or Tapered | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Housing Material | Plastic | |
| Actuator Material | Plastic | |
| Features | Low Insertion Force (LIF) | |
| Voltage Rating | 50V | |
| Operating Temperature | -40°C ~ 85°C | |
| Material Flammability Rating | - | |
| Current Rating | 0.25A per Contact | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FR02C061JA1-R5000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FR02C061JA1-R5000 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of FR02C061JA1-R5000 is new and unused, you can buy FR02C061JA1-R5000 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FR02C061JA1-R5000.
