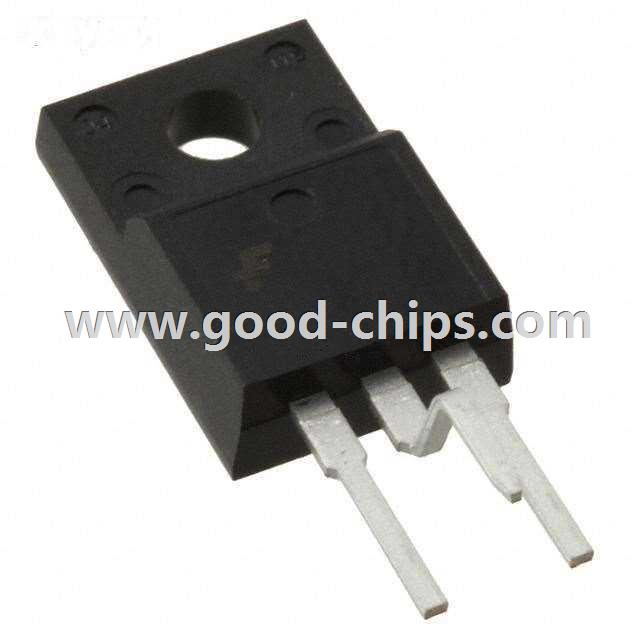

| Manufacturer Part Number: | FQPF2N80YDTU |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9810 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 800V TO-220-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FQPF2N80YDTU Datasheet |
| Internal Part Number | 898-FQPF2N80YDTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | QFET® | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 800V | |
| Current - Continuous Drain (Id) @ 25°C | 1.5A (Tc) | |
| Rds On (Max) @ Id, Vgs | 6.3 Ohm @ 750mA, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 15nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 550pF @ 25V | |
| Power - Max | 35W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 Formed Leads | |
| Supplier Device Package | TO-220-3 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FQPF2N80YDTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FQPF2N80YDTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FQPF2N80YDTU is new and unused, you can buy FQPF2N80YDTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FQPF2N80YDTU.
