Manufacturer Part Number: | FQL40N50F |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9308 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 500V 40A TO-264 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FQL40N50F Datasheet |
Internal Part Number | 898-FQL40N50F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | High Voltage Switches for Power Processing | |
PCN Assembly/Origin | Assembly Site Transfer 06/Apr/2015 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Fairchild Semiconductor | |
Series | FRFET® | |
Packaging | Tube | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 500V | |
Current - Continuous Drain (Id) @ 25°C | 40A (Tc) | |
Rds On (Max) @ Id, Vgs | 110 mOhm @ 20A, 10V | |
Vgs(th) (Max) @ Id | 5V @ 250µA | |
Gate Charge (Qg) @ Vgs | 200nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 7500pF @ 25V | |
Power - Max | 460W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Through Hole | |

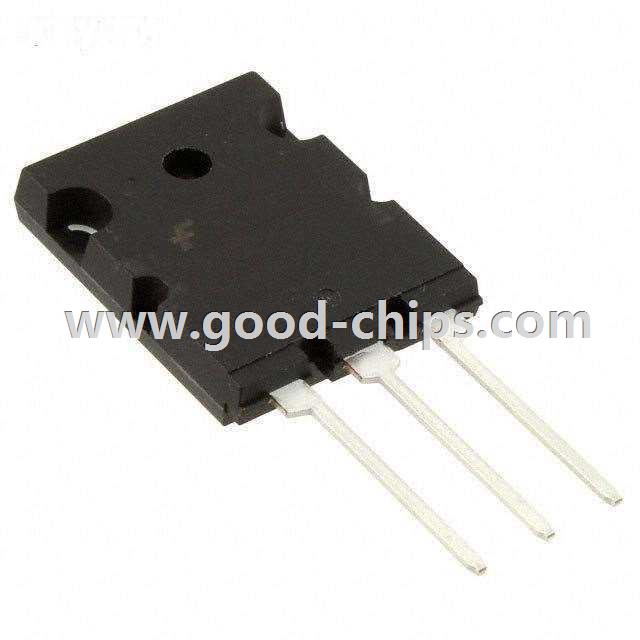

Package / Case | TO-264-3, TO-264AA | |
Supplier Device Package | TO-264 | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FQL40N50F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FQL40N50F is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FQL40N50F is new and unused, you can buy FQL40N50F Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FQL40N50F.
