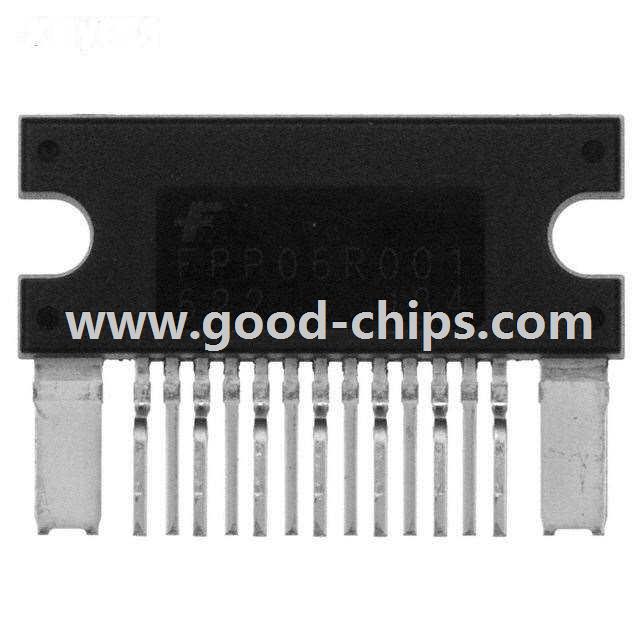

Manufacturer Part Number: | FPP06R001 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Forward Converter, Full Bridge Switching Regulator IC Positive, Isolation Capable Programmable 5V 1 Output 40A EPM15 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FPP06R001 Datasheet |
Internal Part Number | 898-FPP06R001 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Fairchild Semiconductor | |
Series | Power-SPM™ | |
Packaging | Bulk | |
Part Status | Obsolete | |
Function | Step-Up/Step-Down | |
Output Configuration | Positive, Isolation Capable | |
Topology | Forward Converter, Full Bridge | |
Output Type | Programmable | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 5V | |
Voltage - Input (Max) | 20V | |
Voltage - Output (Min/Fixed) | 5V | |
Voltage - Output (Max) | 12V | |
Current - Output | 40A | |
Frequency - Switching | - | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Through Hole | |
Package / Case | EPM15 | |
Supplier Device Package | EPM15 | |
Standard Package | 19 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FPP06R001 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FPP06R001 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FPP06R001 is new and unused, you can buy FPP06R001 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FPP06R001.
