| Manufacturer Part Number: | FPF2595UCX |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC LOAD SWITCH CURR LIMIT 12WLCS |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FPF2595UCX Datasheet |
| Internal Part Number | 898-FPF2595UCX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | FPF2595UCX Material Declaration FPF2595UCX Cert of Compliance | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | IntelliMAX™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Type | General Purpose | |
| Number of Outputs | 1 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | High Side | |
| Output Type | P-Channel | |
| Interface | On/Off | |
| Voltage - Load | 2.5 V ~ 5.5 V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 3.9A | |
| Rds On (Typ) | 35 mOhm | |
| Input Type | Non-Inverting | |
| Features | Status Flag | |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

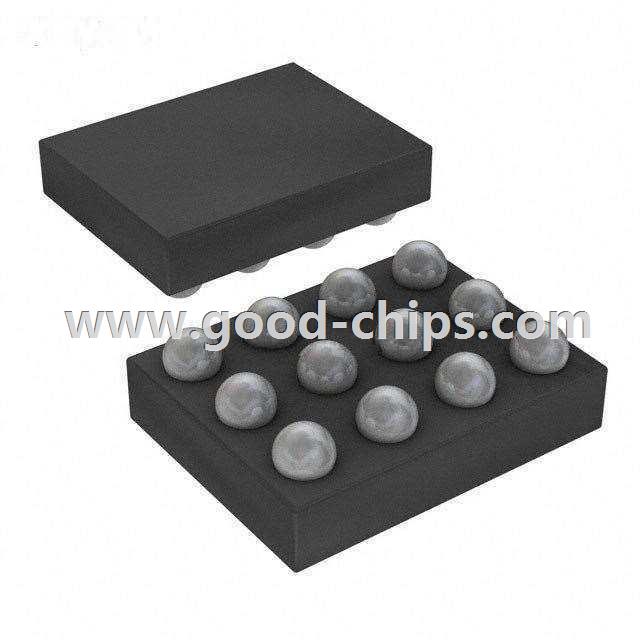

| Package / Case | 12-UFBGA, WLCSP | |
| Supplier Device Package | 12-WLCSP (3x4) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FPF2595UCX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FPF2595UCX is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FPF2595UCX is new and unused, you can buy FPF2595UCX Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FPF2595UCX.
