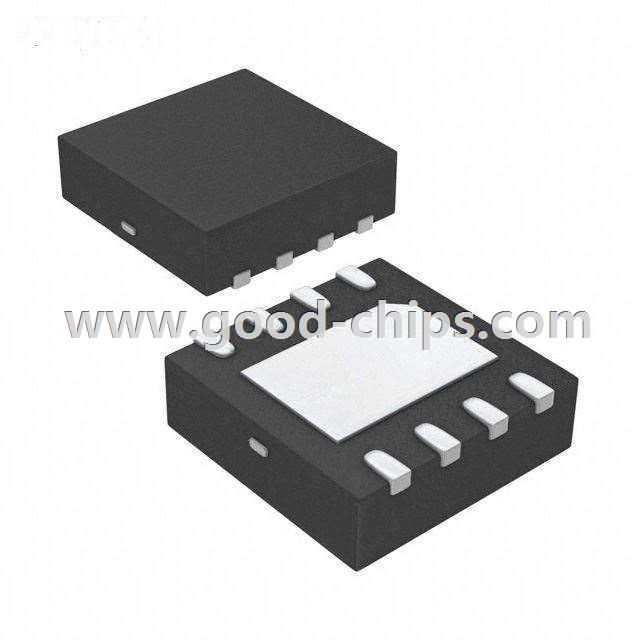

.jpg)
| Manufacturer Part Number: | FPF2303MPX |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC LOAD SW 2CH CONST CURR 8-MLP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FPF2303MPX Datasheet |
| Internal Part Number | 898-FPF2303MPX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | IntelliMAX™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Type | General Purpose | |
| Number of Outputs | 2 | |
| Ratio - Input:Output | 1:2 | |
| Output Configuration | High Side | |
| Output Type | P-Channel | |
| Interface | On/Off | |
| Voltage - Load | 1.8 V ~ 5.5 V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 1.1A | |
| Rds On (Typ) | 75 mOhm | |
| Input Type | Non-Inverting | |
| Features | Slew Rate Controlled, Status Flag | |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | 8-WDFN Exposed Pad | |
| Supplier Device Package | 8-MLP (3x3) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FPF2303MPX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FPF2303MPX is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FPF2303MPX is new and unused, you can buy FPF2303MPX Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FPF2303MPX.
