| Manufacturer Part Number: | FPF1504UCX |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9665 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC POWER DIST LOAD SWITCH 4WLCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FPF1504UCX Datasheet |
| Internal Part Number | 898-FPF1504UCX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | IntelliMAX™ | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Switch Type | General Purpose | |
| Number of Outputs | 1 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | High Side | |
| Output Type | P-Channel | |
| Interface | On/Off | |
| Voltage - Load | 1 V ~ 3.6 V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 1.5A | |
| Rds On (Typ) | 15 mOhm | |
| Input Type | Non-Inverting | |
| Features | Load Discharge, Slew Rate Controlled | |
| Fault Protection | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

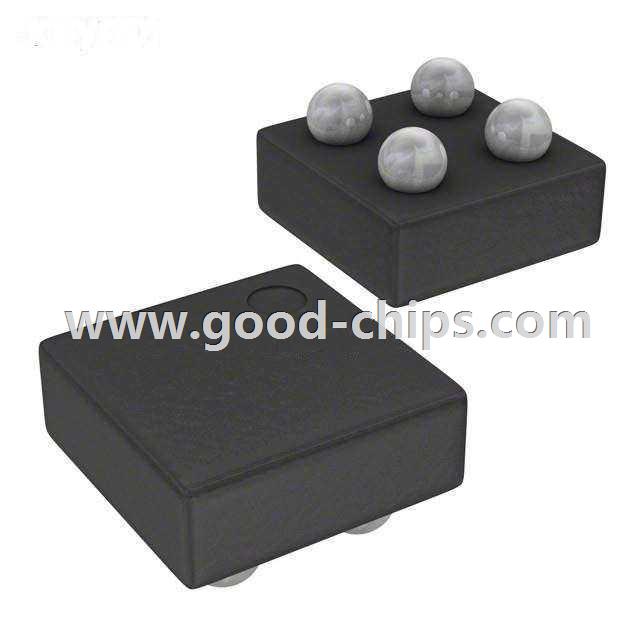

| Package / Case | 4-UFBGA, WLCSP | |
| Supplier Device Package | 4-WLCSP (0.96x0.96) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FPF1504UCX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FPF1504UCX is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FPF1504UCX is new and unused, you can buy FPF1504UCX Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FPF1504UCX.
