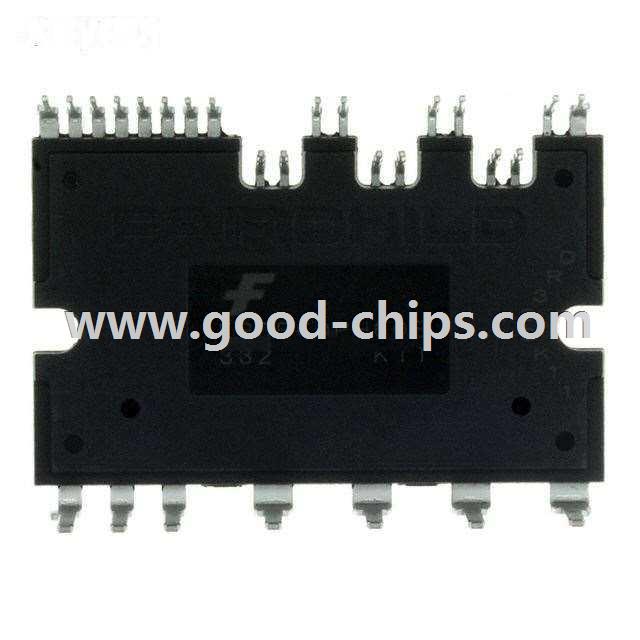

Manufacturer Part Number: | FPDB60PH60B |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Power Driver Modules |
Available Quantity: | 9064 Pieces |
Unit Price: | Quote by Email |
Description: | Power Driver Module IGBT 2 Phase 600V 60A SPM27-HC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FPDB60PH60B Datasheet |
Internal Part Number | 898-FPDB60PH60B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Description Chg 16/Mar/2016 Marking Chg 04/May/2016 SPM3/3V/3F 03/Aug/2016 | |
Online Catalog | SPM® Series | |
Category | Discrete Semiconductor Products | |
Family | Power Driver Modules | |
Manufacturer | Fairchild Semiconductor | |
Series | - | |
Part Status | Active | |
Type | IGBT | |
Configuration | 2 Phase | |
Current | 60A | |
Voltage | 600V | |
Voltage - Isolation | 2500Vrms | |
Package / Case | SPM27-HC | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FPDB60PH60B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FPDB60PH60B is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FPDB60PH60B is new and unused, you can buy FPDB60PH60B Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FPDB60PH60B.
