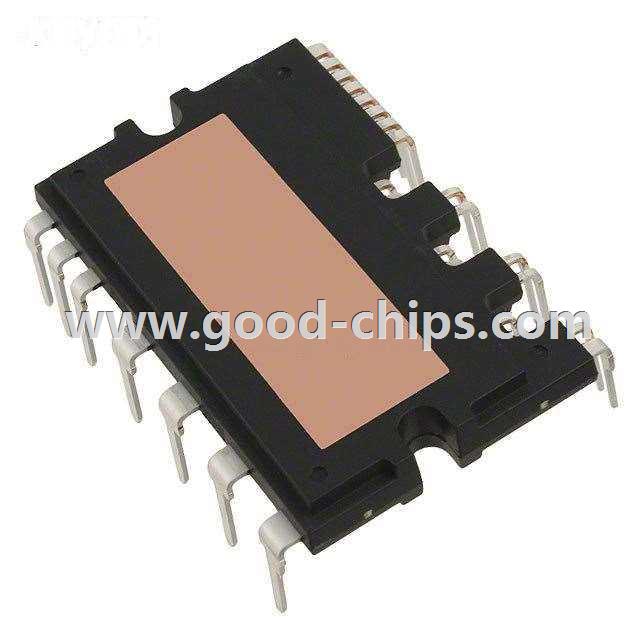

Manufacturer Part Number: | FPDB50PH60 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Power Driver Modules |
Available Quantity: | 9613 Pieces |
Unit Price: | Quote by Email |
Description: | Power Driver Module IGBT 2 Phase 600V 30A SPM27HA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FPDB50PH60 Datasheet |
Internal Part Number | 898-FPDB50PH60 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Smart Power | |
PCN Design/Specification | Wire Bonding 06/April/2007 Marking Chg 04/May/2016 | |
PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
Article Library | Over Current Protection or Short Circuit Protection - Article | |
Online Catalog | SPM® Series | |
Category | Discrete Semiconductor Products | |
Family | Power Driver Modules | |
Manufacturer | Fairchild Semiconductor | |
Series | - | |
Part Status | Active | |
Type | IGBT | |
Configuration | 2 Phase | |
Current | 30A | |
Voltage | 600V | |
Voltage - Isolation | 2500Vrms | |
Package / Case | SPM27HA | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FPDB50PH60 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FPDB50PH60 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FPDB50PH60 is new and unused, you can buy FPDB50PH60 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FPDB50PH60.
