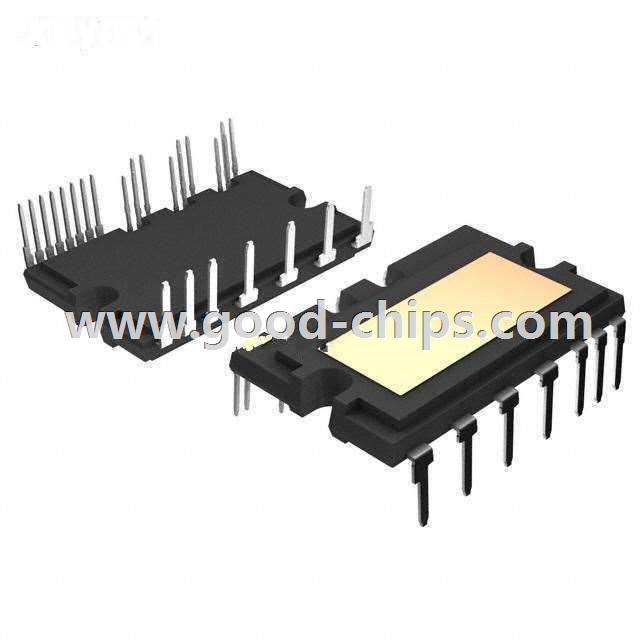

Manufacturer Part Number: | FPDB20PH60 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Power Driver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Power Driver Module IGBT 2 Phase 600V 12A SPM27GA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FPDB20PH60 Datasheet |
Internal Part Number | 898-FPDB20PH60 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Wire Bonding 06/April/2007 | |
Category | Discrete Semiconductor Products | |
Family | Power Driver Modules | |
Manufacturer | Fairchild Semiconductor | |
Series | - | |
Part Status | Obsolete | |
Type | IGBT | |
Configuration | 2 Phase | |
Current | 12A | |
Voltage | 600V | |
Voltage - Isolation | 2500Vrms | |
Package / Case | SPM27GA | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FPDB20PH60 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FPDB20PH60 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FPDB20PH60 is new and unused, you can buy FPDB20PH60 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FPDB20PH60.
