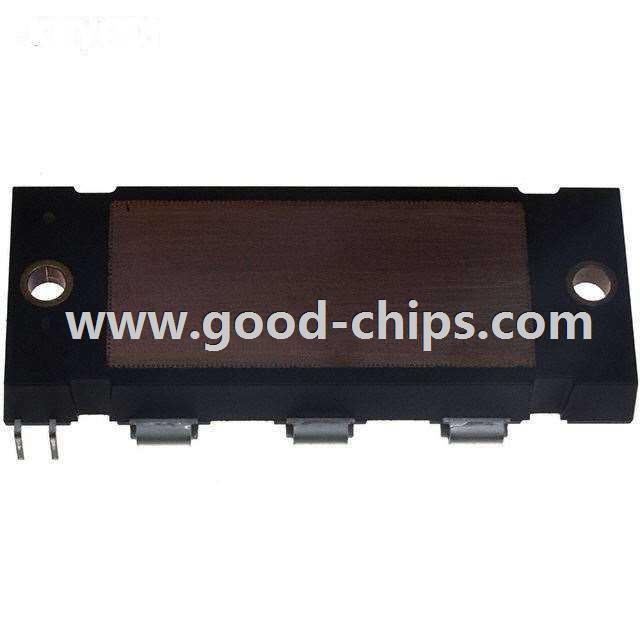

| Manufacturer Part Number: | FP7G100US60 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module Half Bridge 600V 100A 400W Chassis Mount EPM7 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FP7G100US60 Datasheet |
| Internal Part Number | 898-FP7G100US60 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Power-SPM™ | |
| Part Status | Obsolete | |
| IGBT Type | - | |
| Configuration | Half Bridge | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 100A | |
| Power - Max | 400W | |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 100A | |
| Current - Collector Cutoff (Max) | 250µA | |
| Input Capacitance (Cies) @ Vce | 6.085nF @ 30V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |
| Package / Case | EPM7 | |
| Supplier Device Package | EPM7 | |
| Standard Package | 5 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FP7G100US60 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FP7G100US60 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FP7G100US60 is new and unused, you can buy FP7G100US60 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FP7G100US60.
