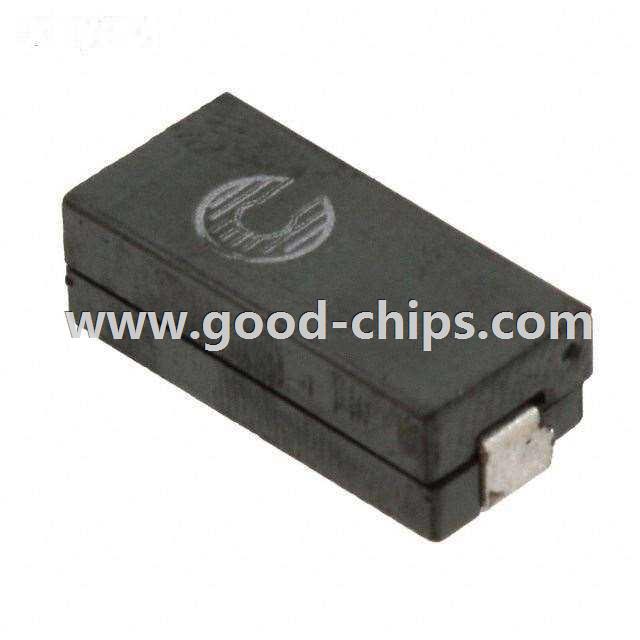

| Manufacturer Part Number: | FP1505R1-R12-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fixed Inductors |
| Available Quantity: | 10463 Pieces |
| Unit Price: | Quote by Email |
| Description: | 120nH Unshielded Wirewound Inductor 53A 0.47 mOhm Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FP1505R1-R12-R Datasheet |
| Internal Part Number | 898-FP1505R1-R12-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | FLAT-PAC FPSeries | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Eaton | |
| Series | FLAT-PAC, FP1505 | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 120nH | |
| Tolerance | ±10% | |
| Current Rating | 53A | |
| Current - Saturation | 87A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 0.47 mOhm | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.579" L x 0.264" W (14.70mm x 6.70mm) | |
| Height - Seated (Max) | 0.197" (5.00mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FP1505R1-R12-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FP1505R1-R12-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of FP1505R1-R12-R is new and unused, you can buy FP1505R1-R12-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FP1505R1-R12-R.
