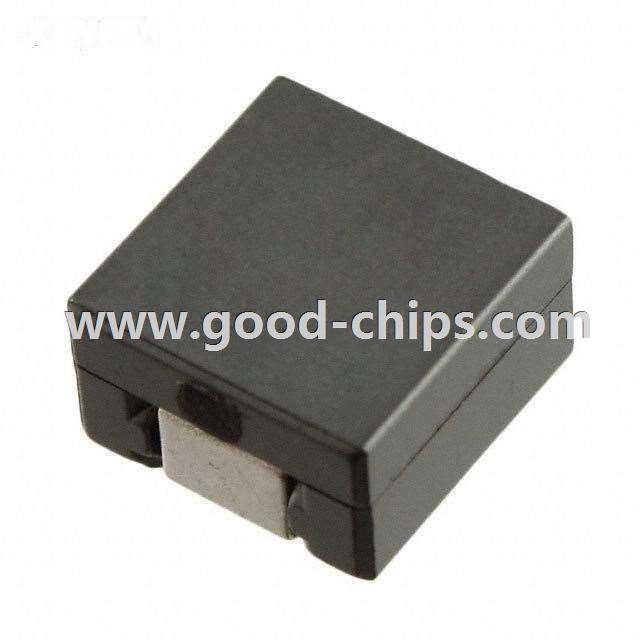

Manufacturer Part Number: | FP1308-R44-R |
---|---|
Manufacturer: | Eaton |
Product Category: | Fixed Inductors |
Available Quantity: | 10210 Pieces |
Unit Price: | Quote by Email |
Description: | 440nH Unshielded Wirewound Inductor 68A 0.24 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FP1308-R44-R Datasheet |
Internal Part Number | 898-FP1308-R44-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | FLAT-PAC FPSeries | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Eaton | |
Series | FLAT-PAC, FP1308 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 440nH | |
Tolerance | ±10% | |
Current Rating | 68A | |
Current - Saturation | 32A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 0.24 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.539" L x 0.510" W (13.70mm x 12.95mm) | |
Height - Seated (Max) | 0.315" (8.00mm) | |
Standard Package | 400 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FP1308-R44-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FP1308-R44-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of FP1308-R44-R is new and unused, you can buy FP1308-R44-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FP1308-R44-R.
