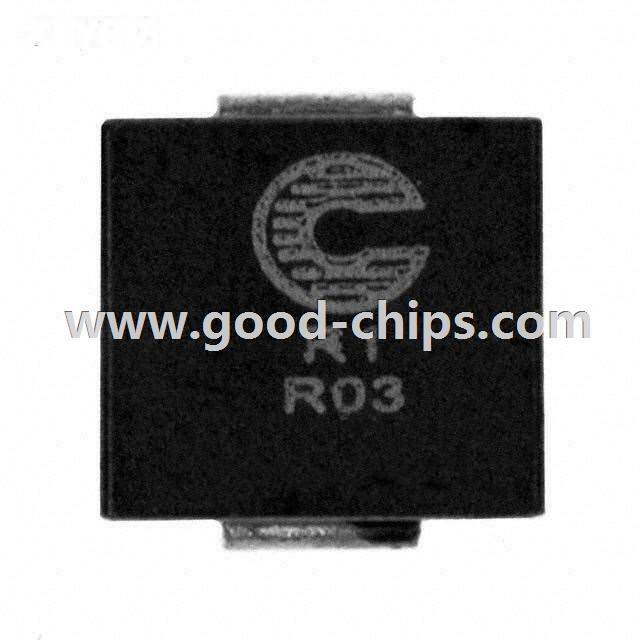

Manufacturer Part Number: | FP0805R1-R03-R |
---|---|
Manufacturer: | Eaton |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 32nH Unshielded Wirewound Inductor 65A 0.17 mOhm Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FP0805R1-R03-R Datasheet |
Internal Part Number | 898-FP0805R1-R03-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | FP/HCP Series Inductors | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Eaton | |
Series | FLAT-PAC, FP0805 | |
Packaging | Digi-Reel® | |
Part Status | Discontinued | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 32nH | |
Tolerance | ±10% | |
Current Rating | 65A | |
Current - Saturation | 110A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 0.17 mOhm | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.300" L x 0.295" W (7.62mm x 7.49mm) | |
Height - Seated (Max) | 0.195" (4.96mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FP0805R1-R03-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FP0805R1-R03-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of FP0805R1-R03-R is new and unused, you can buy FP0805R1-R03-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FP0805R1-R03-R.
