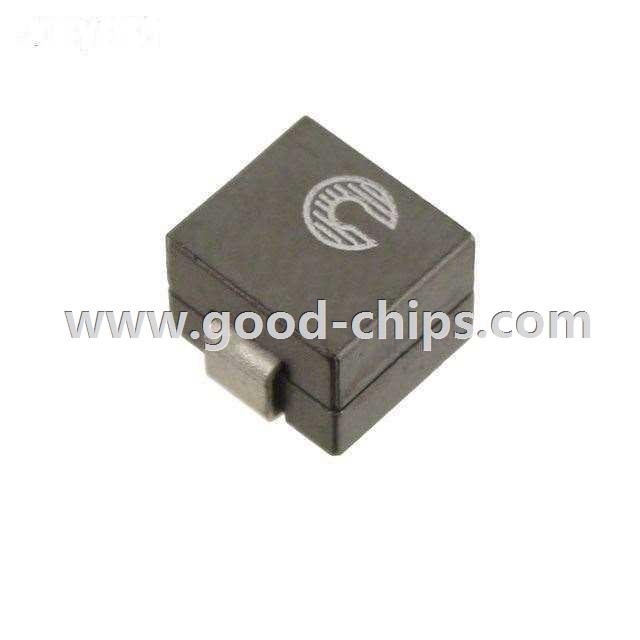

Manufacturer Part Number: | FP0705R2-R10-R |
---|---|
Manufacturer: | Eaton |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 105nH Unshielded Wirewound Inductor 38A 0.32 mOhm Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FP0705R2-R10-R Datasheet |
Internal Part Number | 898-FP0705R2-R10-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | FP/HCP Series Inductors | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Eaton | |
Series | FLAT-PAC, FP0705 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 105nH | |
Tolerance | ±10% | |
Current Rating | 38A | |
Current - Saturation | 44A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 0.32 mOhm | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | |
Height - Seated (Max) | 0.195" (4.95mm) | |
Standard Package | 950 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FP0705R2-R10-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FP0705R2-R10-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of FP0705R2-R10-R is new and unused, you can buy FP0705R2-R10-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FP0705R2-R10-R.
