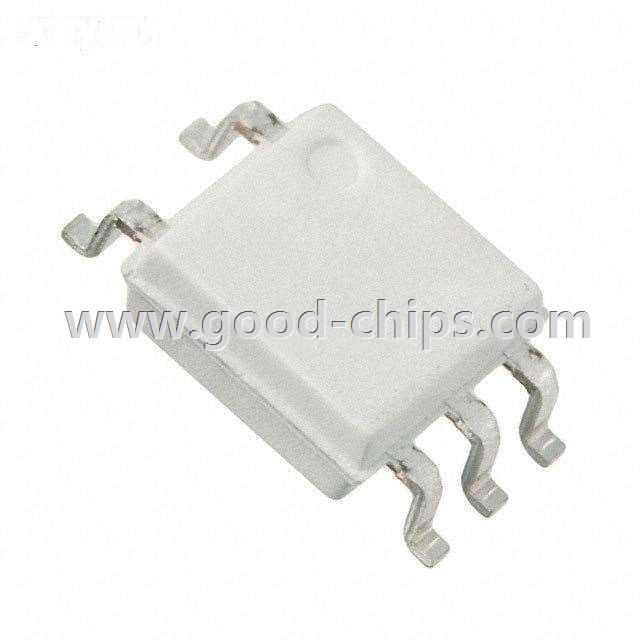

| Manufacturer Part Number: | FODM8071R2 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Optoisolators - Logic Output |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Logic Output Optoisolator 20Mbps Push-Pull, Totem Pole 3750Vrms 1 Channel 20kV/µs CMTI 5-MFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FODM8071R2 Datasheet |
| Internal Part Number | 898-FODM8071R2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | FODM8071 Series | |
| Category | Isolators | |
| Family | Optoisolators - Logic Output | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Inputs - Side 1/Side 2 | 1/0 | |
| Voltage - Isolation | 3750Vrms | |
| Common Mode Transient Immunity (Min) | 20kV/µs | |
| Input Type | DC | |
| Output Type | Push-Pull, Totem Pole | |
| Current - Output / Channel | 10mA | |
| Data Rate | 20Mbps | |
| Propagation Delay tpLH / tpHL (Max) | 55ns, 55ns | |
| Rise / Fall Time (Typ) | 5.8ns, 5.3ns | |
| Voltage - Forward (Vf) (Typ) | 1.35V | |
| Current - DC Forward (If) (Max) | 20mA | |
| Voltage - Supply | 3 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 110°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD (5 Leads), Gull Wing | |
| Supplier Device Package | 5-MFP | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FODM8071R2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FODM8071R2 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FODM8071R2 is new and unused, you can buy FODM8071R2 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FODM8071R2.
