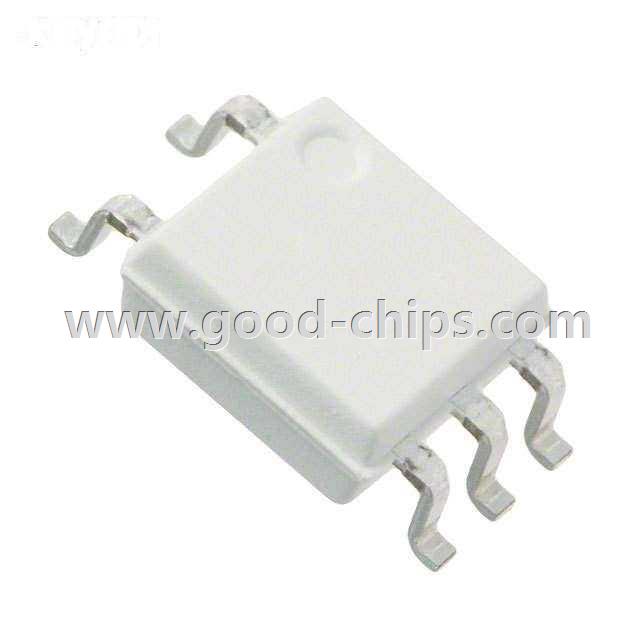

| Manufacturer Part Number: | FODM611 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Optoisolators - Logic Output |
| Available Quantity: | 11953 Pieces |
| Unit Price: | Quote by Email |
| Description: | Logic Output Optoisolator 10Mbps Open Collector, Schottky Clamped 3750Vrms 1 Channel 20kV/µs CMTI 5-MFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FODM611 Datasheet |
| Internal Part Number | 898-FODM611 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | FODM611 Series | |
| Category | Isolators | |
| Family | Optoisolators - Logic Output | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Inputs - Side 1/Side 2 | 1/0 | |
| Voltage - Isolation | 3750Vrms | |
| Common Mode Transient Immunity (Min) | 20kV/µs | |
| Input Type | DC | |
| Output Type | Open Collector, Schottky Clamped | |
| Current - Output / Channel | 50mA | |
| Data Rate | 10Mbps | |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns | |
| Rise / Fall Time (Typ) | 20ns, 10ns | |
| Voltage - Forward (Vf) (Typ) | 1.45V | |
| Current - DC Forward (If) (Max) | 50mA | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD (5 Leads), Gull Wing | |
| Supplier Device Package | 5-MFP | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FODM611 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FODM611 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FODM611 is new and unused, you can buy FODM611 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FODM611.
