| Manufacturer Part Number: | FOD852300W |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 10784 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Darlington Output 5000Vrms 1 Channel 4-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FOD852300W Datasheet |
| Internal Part Number | 898-FOD852300W | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5000Vrms | |
| Current Transfer Ratio (Min) | 1000% @ 1mA | |
| Current Transfer Ratio (Max) | 15000% @ 1mA | |
| Turn On / Turn Off Time (Typ) | - | |
| Rise / Fall Time (Typ) | 100µs, 20µs | |
| Input Type | DC | |
| Output Type | Darlington | |
| Voltage - Output (Max) | 300V | |
| Current - Output / Channel | 150mA | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 50mA | |
| Vce Saturation (Max) | 1.2V | |
| Operating Temperature | -30°C ~ 100°C | |
| Mounting Type | Through Hole | |

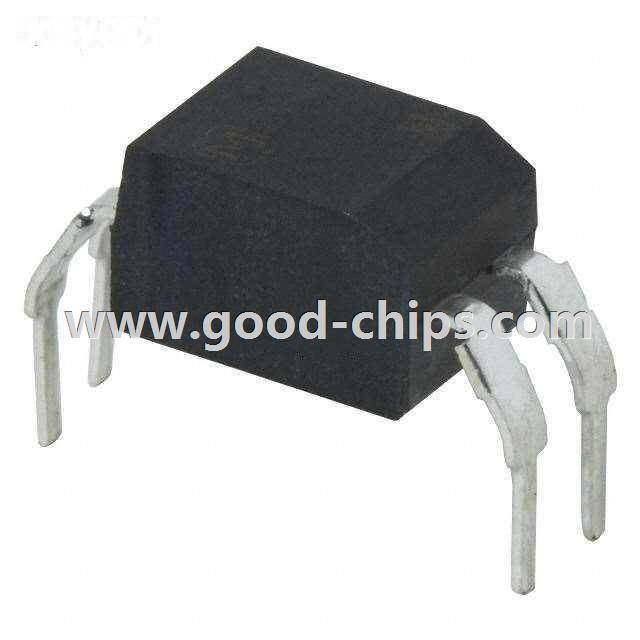

| Package / Case | 4-DIP (0.400", 10.16mm) | |
| Supplier Device Package | 4-DIP | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FOD852300W | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FOD852300W is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FOD852300W is new and unused, you can buy FOD852300W Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FOD852300W.
