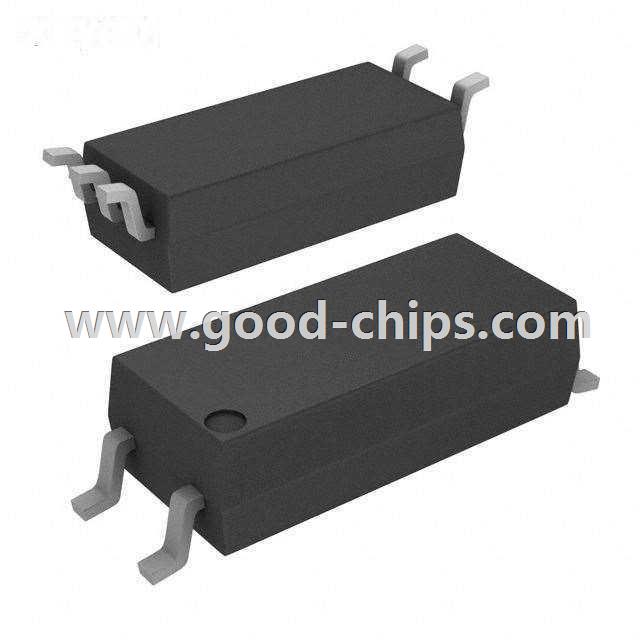

| Manufacturer Part Number: | FOD8321V |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Isolators - Gate Drivers |
| Available Quantity: | 11009 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3A Gate Driver Optical Coupling 5000Vrms 1 Channel 5-SOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FOD8321V Datasheet |
| Internal Part Number | 898-FOD8321V | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Cloud Systems Computing | |
| PCN Assembly/Origin | 8" Wafer Update 04/Feb/2015 | |
| Category | Isolators | |
| Family | Isolators - Gate Drivers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Technology | Optical Coupling | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5000Vrms | |
| Common Mode Transient Immunity (Min) | 20kV/µs | |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns | |
| Pulse Width Distortion (Max) | 300ns | |
| Rise / Fall Time (Typ) | 60ns, 60ns | |
| Current - Output High, Low | 2A, 2A | |
| Current - Peak Output | 3A | |
| Voltage - Forward (Vf) (Typ) | 1.5V | |
| Current - DC Forward (If) (Max) | 25mA | |
| Voltage - Supply | 16 V ~ 30 V | |
| Operating Temperature | -40°C ~ 100°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SOIC (0.346", 8.80mm Width) 5 Leads | |
| Supplier Device Package | 5-SOP | |
| Approvals | IEC/EN/DIN, UL | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FOD8321V | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FOD8321V is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FOD8321V is new and unused, you can buy FOD8321V Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FOD8321V.
