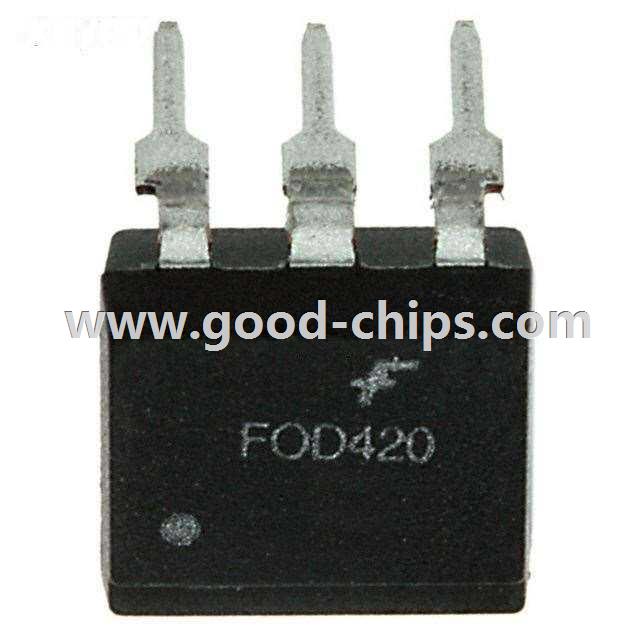

Manufacturer Part Number: | FOD420 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Optoisolators - Triac, SCR Output |
Available Quantity: | 11880 Pieces |
Unit Price: | Quote by Email |
Description: | Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FOD420 Datasheet |
Internal Part Number | 898-FOD420 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Snubberless Triac Drive Optocouplers | |
Online Catalog | FOD420, FOD4208, FOD4216, FOD4218 Series | |
Category | Isolators | |
Family | Optoisolators - Triac, SCR Output | |
Manufacturer | Fairchild Semiconductor | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Output Type | Triac | |
Zero Crossing Circuit | No | |
Number of Channels | 1 | |
Voltage - Isolation | 5000Vrms | |
Voltage - Off State | 600V | |
Static dV/dt (Min) | 10kV/µs | |
Current - LED Trigger (Ift) (Max) | 2mA | |
Current - On State (It (RMS)) (Max) | 300mA | |
Current - Hold (Ih) | 500µA | |
Turn On Time | 60µs | |
Voltage - Forward (Vf) (Typ) | 1.28V | |
Current - DC Forward (If) (Max) | 30mA | |
Operating Temperature | -55°C ~ 100°C | |
Mounting Type | Through Hole | |
Package / Case | 6-DIP (0.300", 7.62mm) | |
Supplier Device Package | 6-DIP | |
Approvals | cUL, FIMKO, UL | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FOD420 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FOD420 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FOD420 is new and unused, you can buy FOD420 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FOD420.
