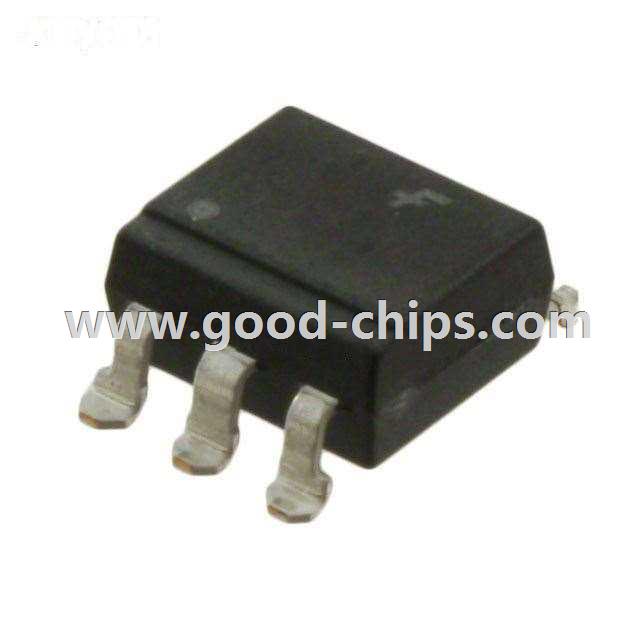

| Manufacturer Part Number: | FOD4118SD |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Optoisolators - Triac, SCR Output |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FOD4118SD Datasheet |
| Internal Part Number | 898-FOD4118SD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Isolators | |
| Family | Optoisolators - Triac, SCR Output | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Output Type | Triac | |
| Zero Crossing Circuit | Yes | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5000Vrms | |
| Voltage - Off State | 800V | |
| Static dV/dt (Min) | 10kV/µs | |
| Current - LED Trigger (Ift) (Max) | 1.3mA | |
| Current - On State (It (RMS)) (Max) | 300mA | |
| Current - Hold (Ih) | 500µA | |
| Turn On Time | 60µs | |
| Voltage - Forward (Vf) (Typ) | 1.25V | |
| Current - DC Forward (If) (Max) | 30mA | |
| Operating Temperature | -55°C ~ 100°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD, Gull Wing | |
| Supplier Device Package | 6-SMD | |
| Approvals | CSA, UL | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FOD4118SD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FOD4118SD is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FOD4118SD is new and unused, you can buy FOD4118SD Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FOD4118SD.
