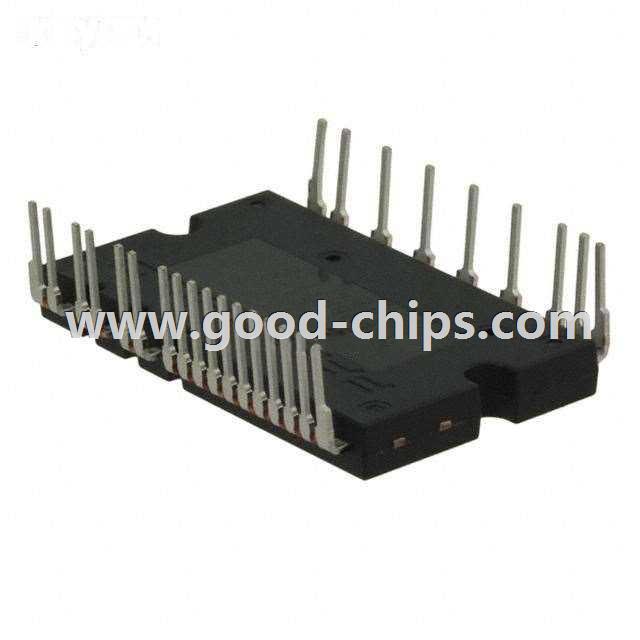

| Manufacturer Part Number: | FNB41560 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9518 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module IGBT 3 Phase 600V 500mA Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FNB41560 Datasheet |
| Internal Part Number | 898-FNB41560 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Reference Design Library | FEBSPM3SPM45_M01MTCA: 7A, 3-Ph, 90~265VAC in | |
| PCN Design/Specification | Multiple Specification Changes 21/Jan/2014 Marking Chg 04/May/2016 | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Online Catalog | Motion-SPM™ SPM45H Series | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Motion-SPM® | |
| Part Status | Active | |
| Type | IGBT | |
| Configuration | 3 Phase | |
| Current | 500mA | |
| Voltage | 600V | |
| Voltage - Isolation | 2000Vrms | |
| Package / Case | Module | |
| Standard Package | 12 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FNB41560 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FNB41560 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FNB41560 is new and unused, you can buy FNB41560 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FNB41560.
