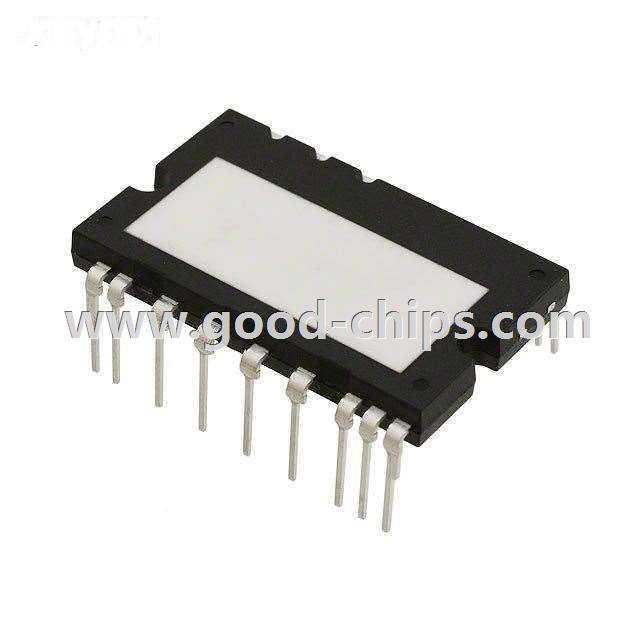

| Manufacturer Part Number: | FNB41560B2 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9100 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module IGBT 3 Phase 600V 15A Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FNB41560B2 Datasheet |
| Internal Part Number | 898-FNB41560B2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | FNB41560B2 Motion SPM 45 Series | |
| Reference Design Library | FEBSPM3SPM45_M01MTCA: 7A, 3-Ph, 90~265VAC in | |
| PCN Design/Specification | Multiple Specification Changes 21/Jan/2014 Marking Chg 04/May/2016 | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Article Library | Over Current Protection or Short Circuit Protection - Article | |
| Online Catalog | Motion-SPM™ SPM45H Series | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Motion-SPM® | |
| Part Status | Active | |
| Type | IGBT | |
| Configuration | 3 Phase | |
| Current | 15A | |
| Voltage | 600V | |
| Voltage - Isolation | 2000Vrms | |
| Package / Case | Module | |
| Standard Package | 12 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FNB41560B2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FNB41560B2 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FNB41560B2 is new and unused, you can buy FNB41560B2 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FNB41560B2.
