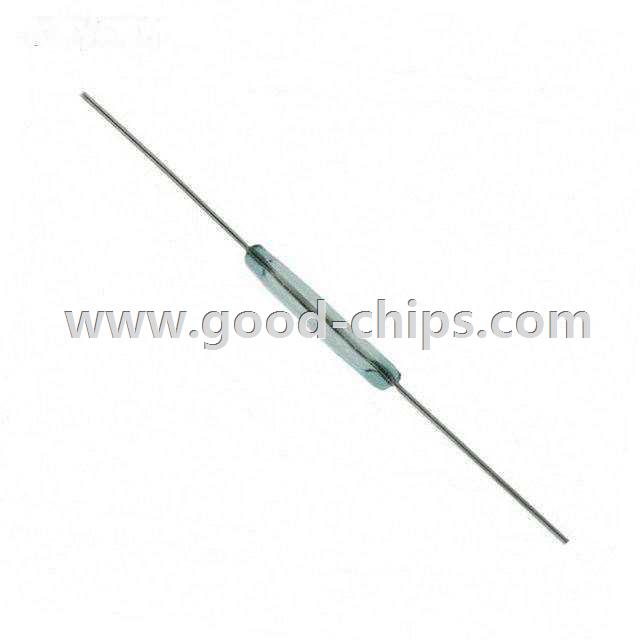

| Manufacturer Part Number: | FLEX-14-20-25 |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Magnetic, Reed Switches |
| Available Quantity: | 81356 Pieces |
| Unit Price: | Quote by Email |
| Description: | Glass Body Reed Switch SPST-NO 20 ~ 25AT Operate Range 10W 350mA (AC), 500mA (DC) 140V Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FLEX-14-20-25 Datasheet |
| Internal Part Number | 898-FLEX-14-20-25 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Modifying Reed Switches | |
| RoHS Information | Cert of Compliance | |
| Featured Product | FLEX-14 Magnetic Reed Switches | |
| Online Catalog | FLEX-14 Series | |
| Category | Switches | |
| Family | Magnetic, Reed Switches | |
| Manufacturer | Littelfuse Inc. | |
| Series | FLEX-14 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Glass Body | |
| Circuit | SPST-NO | |
| Operate Range | 20 ~ 25AT | |
| Release Range | - | |
| Current - Switching | 350mA (AC), 500mA (DC) | |
| Voltage - Switching AC | 140V | |
| Voltage - Switching DC | 200V | |
| Power - Rated | 10W | |
| Operate Time | 0.55ms | |
| Release Time | 0.2ms | |
| Mounting Type | Through Hole | |
| Termination Style | Axial | |
| Length - Overall | 1.744" (44.30mm) | |
| Size - Body | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | |
| Height Above Board | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Capacitance | 0.20pF | |
| Current - Carry | 1A (DC) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FLEX-14-20-25 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FLEX-14-20-25 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of FLEX-14-20-25 is new and unused, you can buy FLEX-14-20-25 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FLEX-14-20-25.
