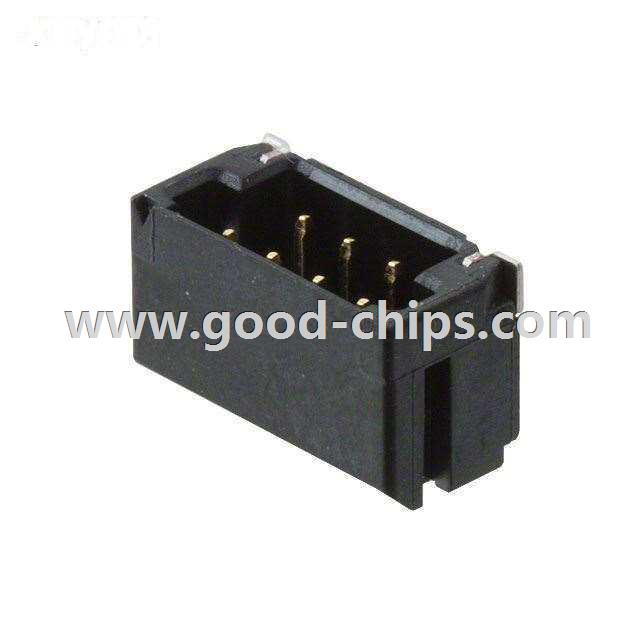

| Manufacturer Part Number: | FI-W7P-HFE |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 10353 Pieces |
| Unit Price: | Quote by Email |
| Description: | 7 Positions Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FI-W7P-HFE Datasheet |
| Internal Part Number | 898-FI-W7P-HFE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | FI Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | JAE Electronics | |
| Series | FI | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Receptacle | |
| Number of Positions | 7 | |
| Number of Positions Loaded | All | |
| Pitch | 0.049" (1.25mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.055" (1.40mm) | |
| Contact Mating Length | 0.094" (2.40mm) | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | Friction Lock | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Color | Black | |
| Standard Package | 160 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FI-W7P-HFE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FI-W7P-HFE is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of FI-W7P-HFE is new and unused, you can buy FI-W7P-HFE JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FI-W7P-HFE.
