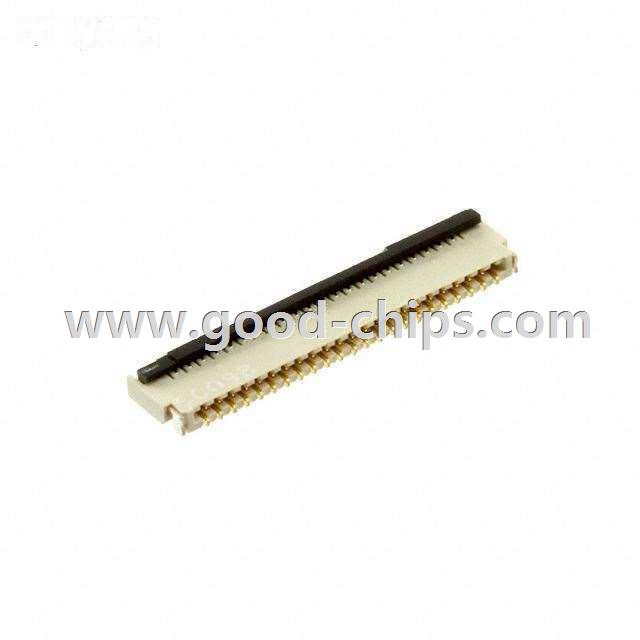

Manufacturer Part Number: | FH39J-45S-0.3SHW(99) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | FFC, FPC (Flat Flexible) Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 45 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FH39J-45S-0.3SHW(99) Datasheet |
Internal Part Number | 898-FH39J-45S-0.3SHW(99) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | FH39 Overview | |
Featured Product | FH39 Series FPC Connectors | |
Online Catalog | FH39, FH39A and FH39J Series | |
Category | Connectors, Interconnects | |
Family | FFC, FPC (Flat Flexible) Connectors | |
Manufacturer | Hirose Electric Co Ltd | |
Series | FH39J | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Flat Flex Type | FPC | |
Mounting Type | Surface Mount, Right Angle | |
Connector/Contact Type | Contacts, Top and Bottom | |
Number of Positions | 45 | |
Pitch | 0.012" (0.30mm) | |
Termination | Solder | |
FFC, FCB Thickness | 0.20mm | |
Height Above Board | 0.044" (1.10mm) | |
Locking Feature | Flip Lock, Backlock | |
Cable End Type | Tapered | |
Contact Material | Phosphor Bronze | |
Contact Finish | Gold | |
Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | |
Actuator Material | Polyamide (PA), Nylon | |
Features | Zero Insertion Force (ZIF) | |
Voltage Rating | 30V | |
Operating Temperature | -55°C ~ 85°C | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 0.2A | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FH39J-45S-0.3SHW(99) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FH39J-45S-0.3SHW(99) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of FH39J-45S-0.3SHW(99) is new and unused, you can buy FH39J-45S-0.3SHW(99) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FH39J-45S-0.3SHW(99).
