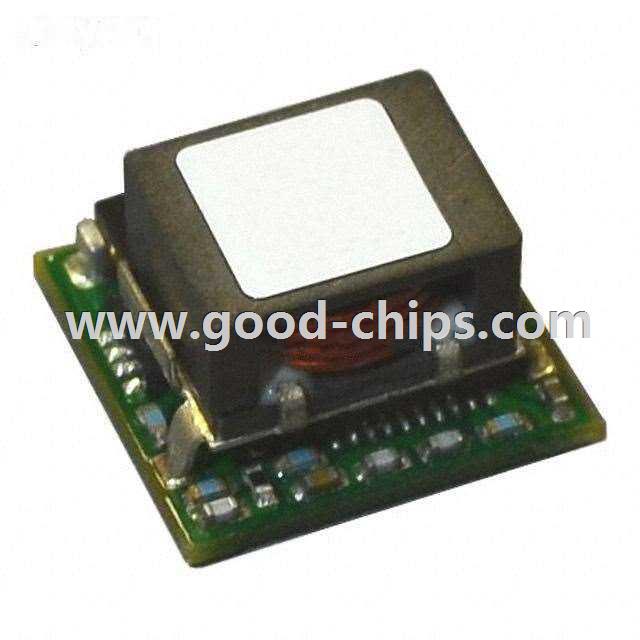

Manufacturer Part Number: | FGSD12SR6012NA |
---|---|
Manufacturer: | FDK America, Inc., a member of Fujitsu Group |
Product Category: | DC DC Converters |
Available Quantity: | 9410 Pieces |
Unit Price: | Quote by Email |
Description: | DC/DC CONVERT 0.45-5.5V 12A 66W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FGSD12SR6012NA Datasheet |
Internal Part Number | 898-FGSD12SR6012NA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Tomodachi Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | FDK America, Inc., a member of Fujitsu Group | |
Series | Tomodachi | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Non-Isolated PoL Module, Digital | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 3V | |
Voltage - Input (Max) | 14.4V | |
Voltage - Output 1 | 0.45 ~ 5.5 V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 12A | |
Power (Watts) - Manufacture Series | - | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OTP, UVLO | |
Mounting Type | Surface Mount | |
Package / Case | Module | |
Size / Dimension | 0.48" L x 0.48" W x 0.33" H (12.2mm x 12.2mm x 8.5mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 95.4% | |
Power (Watts) - Max | - | |
Standard Package | 200 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FGSD12SR6012NA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FGSD12SR6012NA is in stock for immediate shipping now. We are the distributor of FDK America, Inc., a member of Fujitsu Group all series components. The condition of FGSD12SR6012NA is new and unused, you can buy FGSD12SR6012NA FDK America, Inc., a member of Fujitsu Group with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FGSD12SR6012NA.
