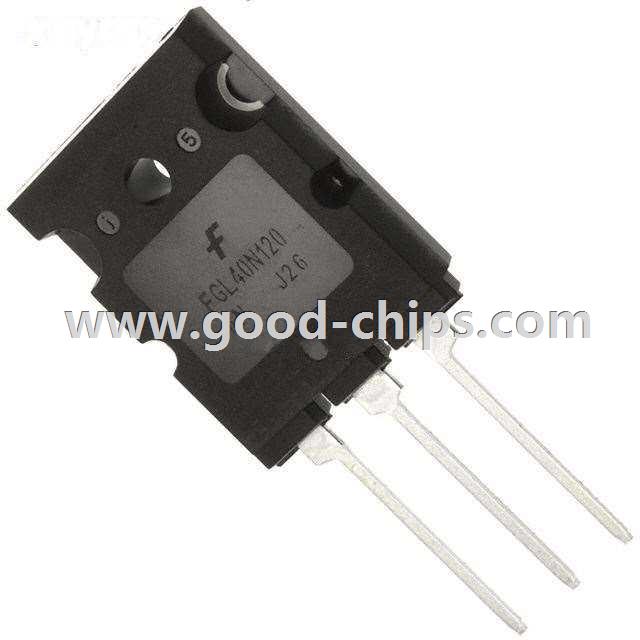

| Manufacturer Part Number: | FGL40N120ANTU |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9523 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT NPT 1200V 64A 500W Through Hole TO-264 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FGL40N120ANTU Datasheet |
| Internal Part Number | 898-FGL40N120ANTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Not For New Designs | |
| IGBT Type | NPT | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 64A | |
| Current - Collector Pulsed (Icm) | 160A | |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 40A | |
| Power - Max | 500W | |
| Switching Energy | 2.3mJ (on), 1.1mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 220nC | |
| Td (on/off) @ 25°C | 15ns/110ns | |
| Test Condition | 600V, 40A, 5 Ohm, 15V | |
| Reverse Recovery Time (trr) | - | |
| Package / Case | TO-264-3, TO-264AA | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-264 | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FGL40N120ANTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FGL40N120ANTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FGL40N120ANTU is new and unused, you can buy FGL40N120ANTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FGL40N120ANTU.
