| Manufacturer Part Number: | FGH60N60SFTU |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Field Stop 600V 120A 378W Through Hole TO-247 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FGH60N60SFTU Datasheet |
| Internal Part Number | 898-FGH60N60SFTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | Field Stop | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 120A | |
| Current - Collector Pulsed (Icm) | 180A | |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 60A | |
| Power - Max | 378W | |
| Switching Energy | 1.79mJ (on), 670µJ (off) | |
| Input Type | Standard | |
| Gate Charge | 198nC | |
| Td (on/off) @ 25°C | 22ns/134ns | |
| Test Condition | 400V, 60A, 5 Ohm, 15V | |
| Reverse Recovery Time (trr) | - | |

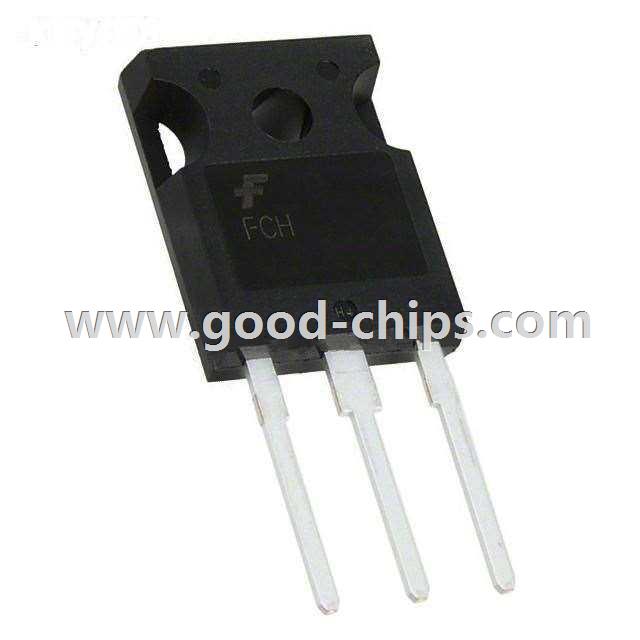

| Package / Case | TO-247-3 | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-247 | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FGH60N60SFTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FGH60N60SFTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FGH60N60SFTU is new and unused, you can buy FGH60N60SFTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FGH60N60SFTU.
