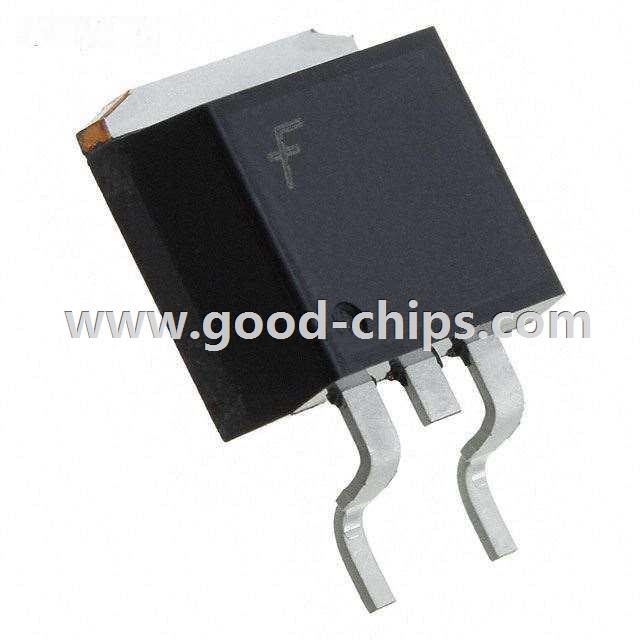

| Manufacturer Part Number: | FGB3040G2_F085 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 400V 41A 150W Surface Mount TO-263AB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FGB3040G2_F085 Datasheet |
| Internal Part Number | 898-FGB3040G2_F085 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Driving Automotive Technology | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Automotive, AEC-Q101, EcoSPARK® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 400V | |
| Current - Collector (Ic) (Max) | 41A | |
| Current - Collector Pulsed (Icm) | - | |
| Vce(on) (Max) @ Vge, Ic | 1.25V @ 4V, 6A | |
| Power - Max | 150W | |
| Switching Energy | - | |
| Input Type | Logic | |
| Gate Charge | 21nC | |
| Td (on/off) @ 25°C | 900ns/4.8µs | |
| Test Condition | - | |
| Reverse Recovery Time (trr) | - | |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | TO-263AB | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FGB3040G2_F085 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FGB3040G2_F085 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FGB3040G2_F085 is new and unused, you can buy FGB3040G2_F085 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FGB3040G2_F085.
