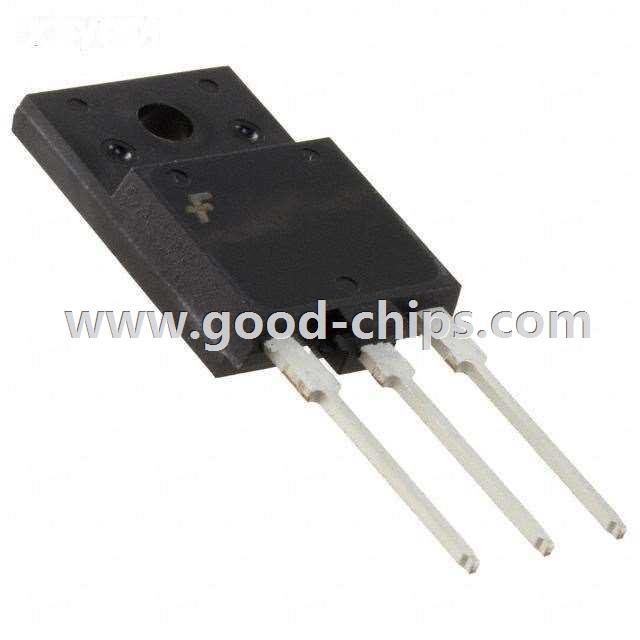

Manufacturer Part Number: | FFAF60UA60DN |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Diodes - Rectifiers - Arrays |
Available Quantity: | 9266 Pieces |
Unit Price: | Quote by Email |
Description: | Diode Array 1 Pair Common Cathode Standard 600V 30A Through Hole SC-94 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FFAF60UA60DN Datasheet |
Internal Part Number | 898-FFAF60UA60DN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
Online Catalog | Diode Array | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Arrays | |
Manufacturer | Fairchild Semiconductor | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Diode Configuration | 1 Pair Common Cathode | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 600V | |
Current - Average Rectified (Io) (per Diode) | 30A | |
Voltage - Forward (Vf) (Max) @ If | 2.2V @ 30A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 90ns | |
Current - Reverse Leakage @ Vr | 100µA @ 600V | |
Mounting Type | Through Hole | |
Package / Case | SC-94 | |
Supplier Device Package | TO-3PF | |
Standard Package | 30 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FFAF60UA60DN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FFAF60UA60DN is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FFAF60UA60DN is new and unused, you can buy FFAF60UA60DN Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FFAF60UA60DN.
