| Manufacturer Part Number: | FFAF10U120DNTU |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Cathode Standard 1200V (1.2kV) 10A Through Hole, Radial SC-94 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FFAF10U120DNTU Datasheet |
| Internal Part Number | 898-FFAF10U120DNTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Diode Configuration | 1 Pair Common Cathode | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 1200V (1.2kV) | |
| Current - Average Rectified (Io) (per Diode) | 10A | |
| Voltage - Forward (Vf) (Max) @ If | 3.5V @ 10A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 100ns | |
| Current - Reverse Leakage @ Vr | 10µA @ 1200V | |
| Mounting Type | Through Hole, Radial | |

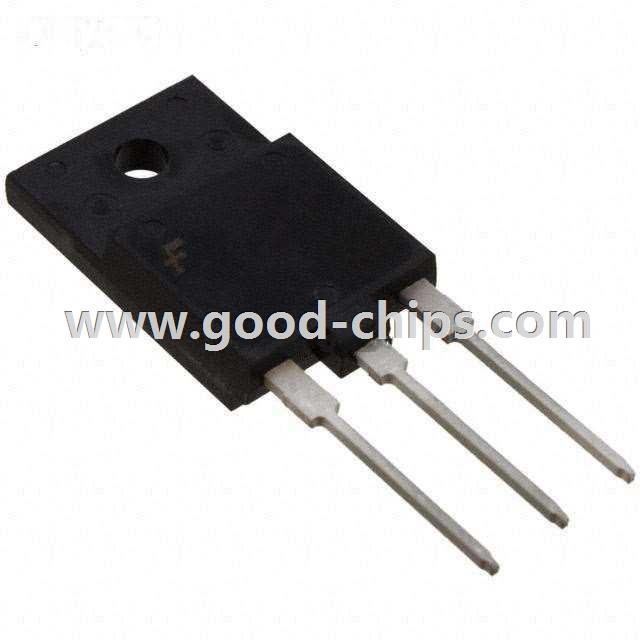

| Package / Case | SC-94 | |
| Supplier Device Package | TO-3PF | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FFAF10U120DNTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FFAF10U120DNTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FFAF10U120DNTU is new and unused, you can buy FFAF10U120DNTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FFAF10U120DNTU.
