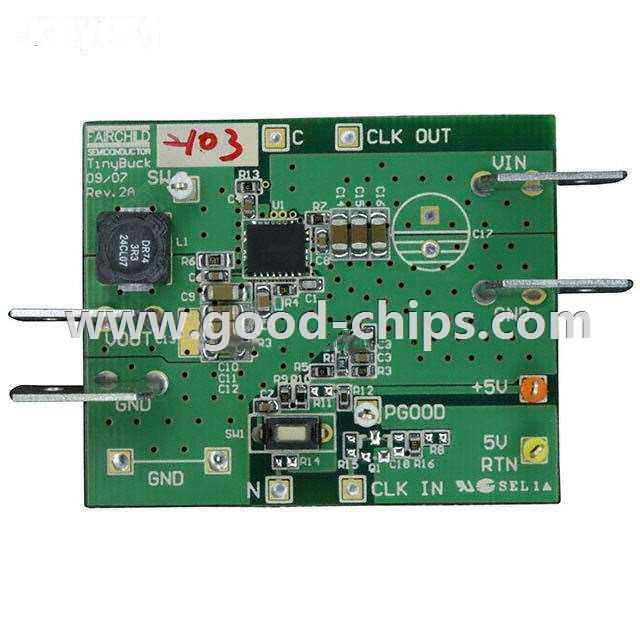

Manufacturer Part Number: | FEB207 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | FAN2103 TinyBuck® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FEB207 Datasheet |
Internal Part Number | 898-FEB207 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Fairchild Semiconductor | |
Series | TinyBuck® | |
Part Status | Obsolete | |
Main Purpose | DC/DC, Step Down | |
Outputs and Type | 1, Non-Isolated | |
Power - Output | 5.4W | |
Voltage - Output | 1.8V | |
Current - Output | 3A | |
Voltage - Input | 8 V ~ 20 V | |
Regulator Topology | Buck | |
Frequency - Switching | 500kHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | FAN2103 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FEB207 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FEB207 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FEB207 is new and unused, you can buy FEB207 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FEB207.
