Manufacturer Part Number: | FDMS5360L_F085 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 60V 60A POWER56 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FDMS5360L_F085 Datasheet |
Internal Part Number | 898-FDMS5360L_F085 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Cloud Systems Computing | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Fairchild Semiconductor | |
Series | Automotive, AEC-Q101, PowerTrench® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 60V | |
Current - Continuous Drain (Id) @ 25°C | 60A (Tc) | |
Rds On (Max) @ Id, Vgs | 8.5 mOhm @ 60A, 10V | |
Vgs(th) (Max) @ Id | 3V @ 250µA | |
Gate Charge (Qg) @ Vgs | 72nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 3695pF @ 30V | |
Power - Max | 150W | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Surface Mount | |

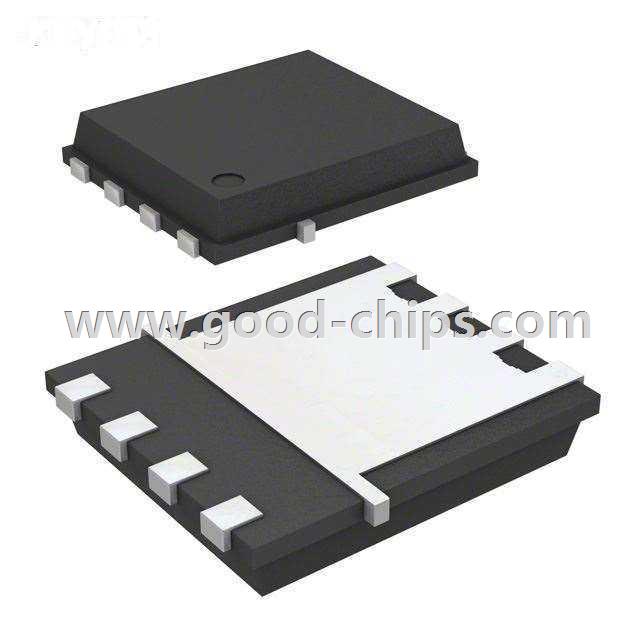

Package / Case | 8-PowerTDFN | |
Supplier Device Package | 8-PQFN (5x6), Power56 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FDMS5360L_F085 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FDMS5360L_F085 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMS5360L_F085 is new and unused, you can buy FDMS5360L_F085 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMS5360L_F085.
